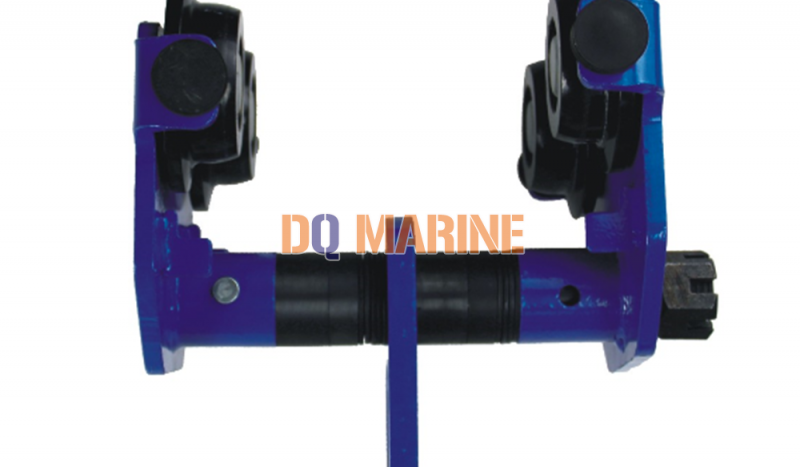

GCTZ Anti-Collision Manual Plain Trolley
GCTZ Anti-Collision Manual Plain Trolley Introduction
Manual trolley is a brief structure, easy to operate, small-size hoist, can be used with chain hoist, electric chain hoist, or other lifting hoist.
To compose lifting and transporting trolley by being installed on the bottom flange of I-Beam.
Product Details
The sizes table
| Model | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Rated Load( T) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Test Road(T) | 0.75 | 1.5 | 3 | 4.5 | 7.5 | 15 | |
| Dimensions(mm) | A | 208 | 242 | 280 | 300 | 316 | 343 |
| B | 196 | 236 | 273 | 320 | 366 | 389 | |
| C | 190 | 211 | 236 | 295 | 334 | 460 | |
| H | 108 | 115 | 130 | 164 | 177 | 237 | |
| I-Beam（mm） | 68-126 | 80-146 | 80-168 | 88-168 | 100-170 | 122-203 | |
| Net Weight(kg) | 5.3 | 8.7 | 10.4 | 24 | 36 | 83 | |
