Tank Lid Packing 35x25 mm
Tank Lid Packing 35x25 mm Features

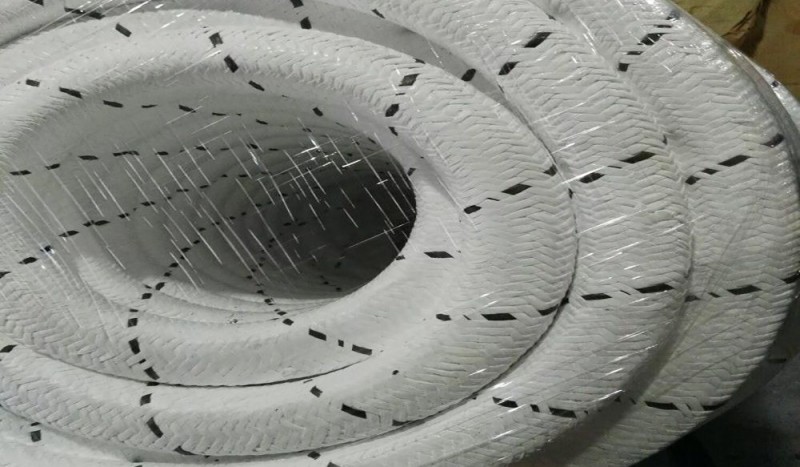

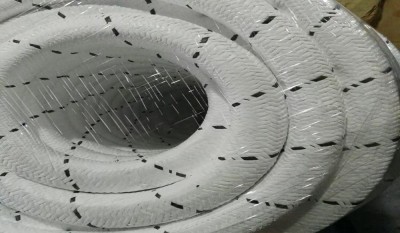

1. A kind of braided packing material made of PTFE thin yarns fiber, almost complete chemical inertia, dimensional stability, low friction coefficient to compression, and excellent
2. Resistance to compression is qualities classifying this packing among the best ones available in the industrial field
3.Suitable for all the chemical compounds (excepting cast alkaline metals and the gaseous fluorine), alternative and rotary motions shafts operating at low peripheral speed, rods, pistons valve stems and expansion joints
4. The packing with PTFE impregnated also available.
Tank Lid Packing 35x25 mm Characteristic
1. Pressure: 2MPa in centrifugal pumps, 10MPa in piston pumps, 20MPa in valves2. Temperature: <280°C
3. Linear speed: 4m/s in centrifugal pumps, 2m/s in piston pumps, 2m/s in valves
4. PH range: 0-14
Parameter specification
| Square Section | Rectangular Section | ||
| IMPA CODE | Size (mm) | IMPA CODE | Size （mm） |
| 810721 | 20×20 | 810726 | 20×15 |
| 810722 | 25×25 | 810727 | 30×20 |
| 810723 | 35×35 | 810728 | 35×25 |
| 810724 | 38×38 | 810729 | 40×30 |
| 810725 | 40×40 | ||
