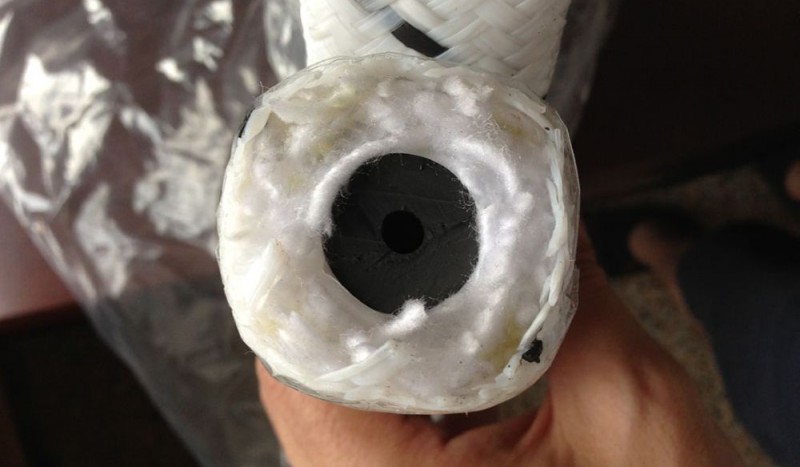

Tank Lid Packing 40x40 mm
Tank Lid Packing 40x40 mm Description
Material: silicone, PTFE, specialty fiberWhether standard parts: standard parts
Performance
1.Common to hatch packing, good chemical resistance, softness. Flexibility remains a few years later. Can be combined provide a square rectangular cross section.
2.Applications: 2500 can be used in all types of container lid, hatches, etc., used in ships, barges, rail road transport containers, storage containers.
3.Application media: TEADIT 2500 model for the transport of dangerous goods and the development of a liquid that can be used most likely to be carrying chemicals, namely chemicals, solvents, acids, alkalis, oil, food.
4.Pros: 2500 is usually used for all types of hatch and container lid, good flexibility, easy fitting lid groove tiny irregular place.
5.NA: molten alkali metals, fluorine compounds under high temperature and pressure, oxygen
6.Pressure: rotate 5, reciprocating 15 static 30 (MPa)
7.Operating temperature: -40-120 (℃)
8.Line speed (m / s): 10
9. PH value :0-14
Parameter specification
| Square Section | Rectangular Section | ||
| IMPA CODE | Size (mm) | IMPA CODE | Size （mm） |
| 810721 | 20×20 | 810726 | 20×15 |
| 810722 | 25×25 | 810727 | 30×20 |
| 810723 | 35×35 | 810728 | 35×25 |
| 810724 | 38×38 | 810729 | 40×30 |
| 810725 | 40×40 | ||
