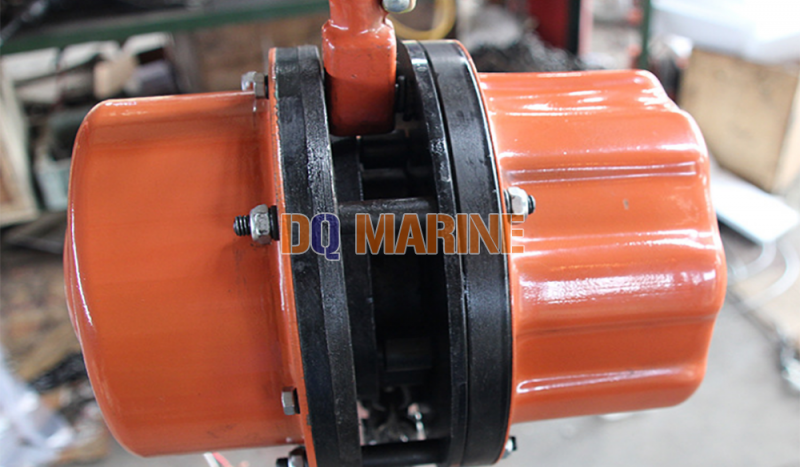

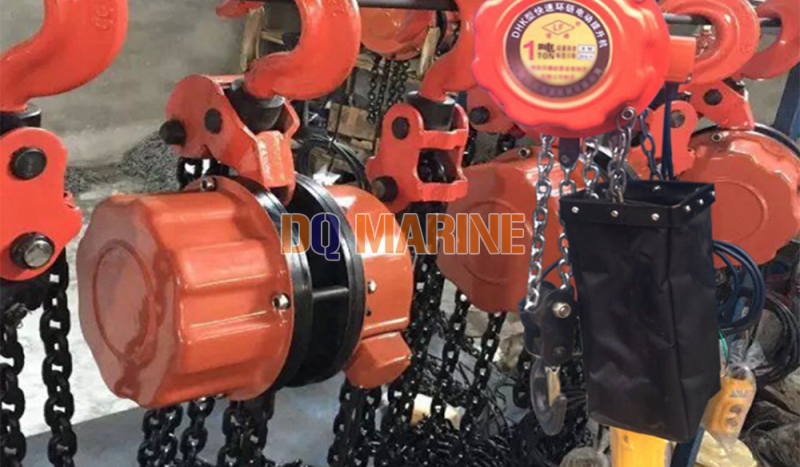

DHK Electric Chain Hoist
DHK Electric Chain Hoist Introduction
Motor is disc brake motor, brake fast and locate accurate.
Impact structure, small size, and light weight, portable and beautiful appearance.
Cycloidal-pin reducer, improve speed soon, smooth running.
Test load is 1.5 times of rated load, high safety factor.
Product Details
DHK Electric Chain Hoist sizes table
| MODEL | DHK1 | DHK2 | DHK3 | DHK5 | DHK10 |
| Rated Load(T) | 1 | 2 | 3 | 5 | 10 |
| Test Load(T) | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 |
| Motor Power(kw) | 0.4 | 0.8 | 1.1 | 1.1 | 1.8 |
| Voltage | 380V 50Hz | ||||
| Lifting Speed(m/min) | 2.5 | 2.5 | 2 | 2 | 1 |
| Net Weight(kg) | 42 | 50 | 55 | 55 | 120 |
| Extra Weight Per Meter of Extra Lift (kg) | 0.82 | 1.7 | 2.9 | 2.9 | 8.84 |
