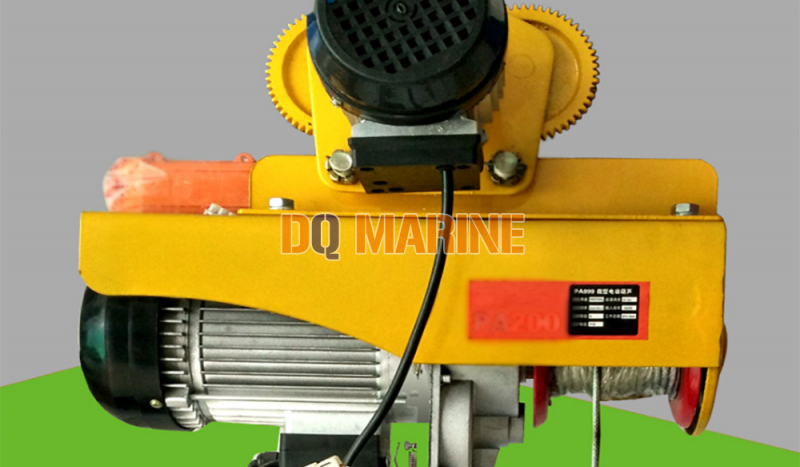

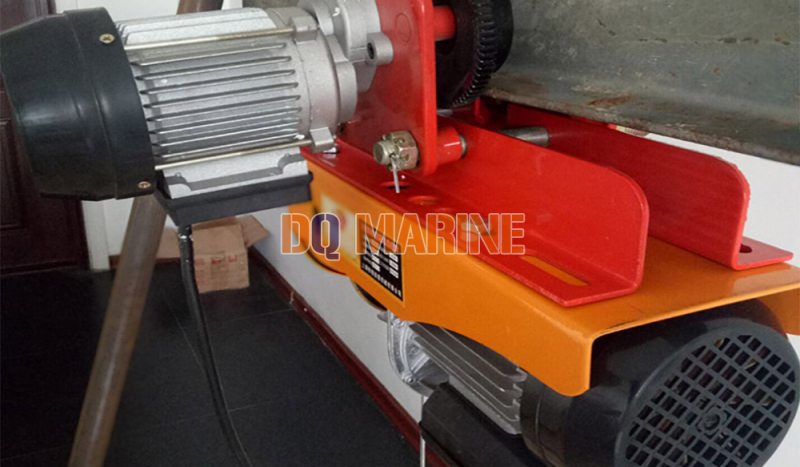

Micro Electric Hoist with Trolley
Micro Electric Hoist with Trolley Introduction
220V hoist is convenient for house.
The hoist design smart, portable usage.
When the goods across the limited device, the motor will stop.
Rope reverse raise, hoist motor will stop working immediately.
Hook design is divided into two stages: static loading and dynamic loading.
Hook can swivel 360 degrees, prevent wire rope swiveling.
Protection rank is IP54, with heat protection device.
Product Details
The sizes table
| Model | 0.5 | 1 | |
| Rated Load(T) | 0.5 | 1 | |
| Tested Load(T) | 0.6 | 1.2 | |
| Running Height(m) | 3 | 3 | |
| Running Speed (m/min) | 16.4 | 16.4 | |
| Motor Model | D25034 | D25035 | |
| Power(W) | 60 | 300 | |
| Speed(RPM) | 1400 | 1400 | |
| Min Turning Radius(CM) | 1000 | 1000 | |
| Size(mm) | A | 320 | 340 |
| B | 203 | 203 | |
| C | 314 | 361 | |
| D | 253 | 253 | |
| F | 2 | 2 | |
| Net Weight | 8KG | 19KG | |
