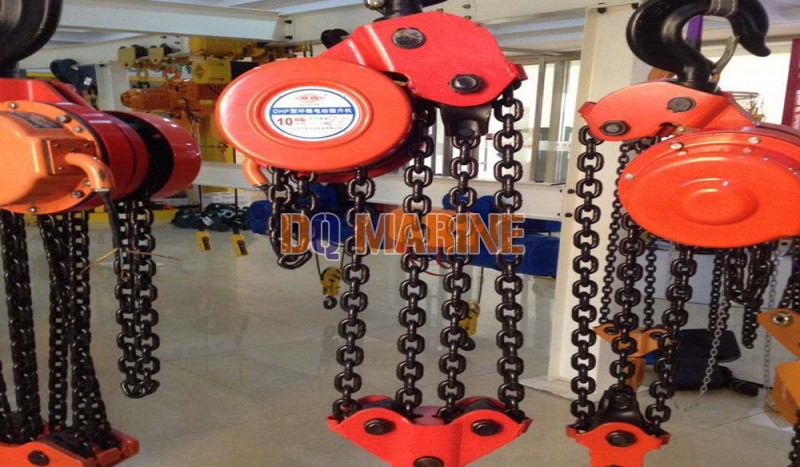

DHP Electric Chain Hoist
DHP Electric Chain Hoist Introduction
Motor is disc brake motor, brake fast and locate accurate.
Reducer adopts planetary gear with heat treatment, precision production, smooth running and low noise during operation.
Alloy steel cover and gearbox can resist heavy hit.
Impact structure, easy to use, safe and reliable.
Product Details
DHP Electric Chain Hoist sizes table
| MODEL | DHP5T | DHP7.5T | DHP10T | DHP20T | DHP30T | |
| Rated Load(T) | 5 | 7.5 | 10 | 20 | 30 | |
| Test Load(Gn) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Motor Power(kw) | 0.5 | 0.5 | 0.5 | 0.5 | 0.75 | |
| Voltage | 380v 50Hz | |||||
| Lifting Speed(m/min) | 0.09 | 0.18 | 0.12 | 0.09 | 0.09 | 0.06 |
| Min Distance Between Two Hooks(mm) | 200 | 600 | 660 | 730 | 1040 | 1480 |
| Falls of Chain | 2 | 3 | 4 | 8 | 12 | |
| Lifting Height(m) | 3 | |||||
| Dia. of Chain(mm) | 10 | 10 | 10 | 10 | 10 | |
| Net Weight(kg) | 58 | 70 | 95 | 195 | 285 | |
| Gross Weight(kg) | 69 | 80 | 108 | 225 | 325 | |
| Package Size (cm) | 56x40x40 | 50x42x49 | 61x48x48 | 70x60x44 | 95x81x53 | |
| Extra Weight Per Meter of Extra Lift (kg) | 4.4 | 6.6 | 8.8 | 17.6 | 25.2 | |
