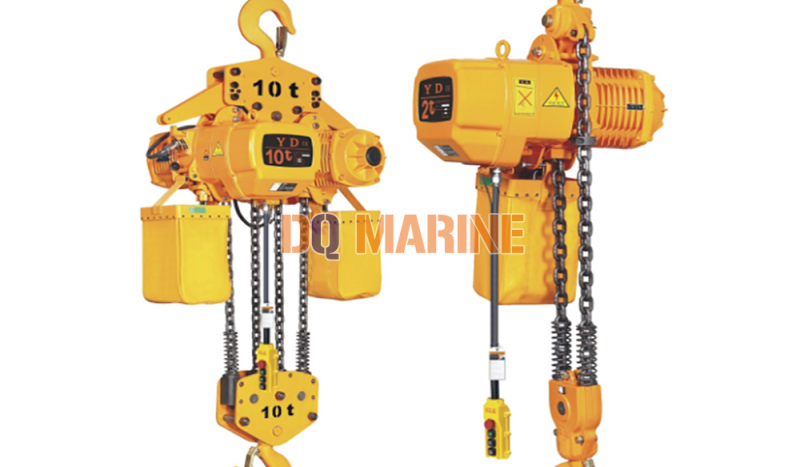

DHG High-Speed Electric Chain Hoist
DHG High-Speed Electric Chain Hoist Specification
Double braking system, more safety and reliable.
High efficiency, light motor, high speed and smooth running during the operation.
Stamped steel cover, light and firm.
Light, smart and beautiful durable chain bags.
Emergency device during the lifting up and down.

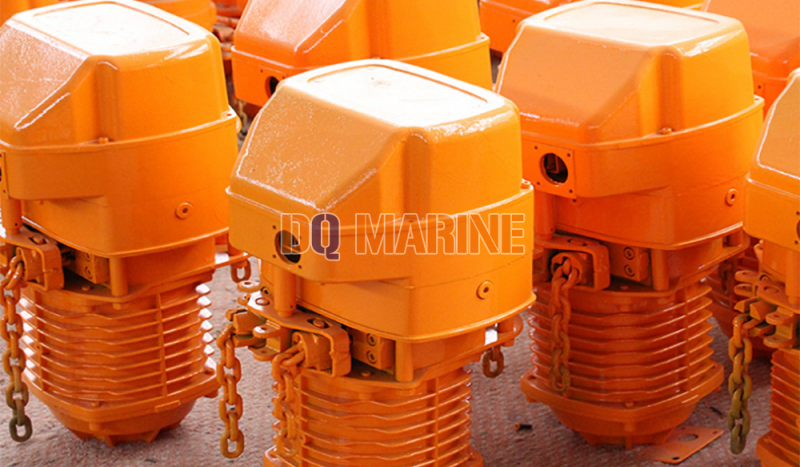

Product Details
The sizes table
| Model | Capacity(T) | Lifting Height (m) | Lifting Speed(m/min) | Lifting Motor | ||||
| Power(Kw) | Speed(r/min) | Phases | Voltage(V) | Frequency(Hz/s) | ||||
| DHG 01-01 | 1 | 3/9 | 6.6 | 1.5 | 1440 | 3 | 380 | 50 |
| DHG 1.5-01 | 1.5 | 3/9 | 8.8 | 3 | 1440 | 3 | 380 | 50 |
| DHG 02-01 | 2 | 3/9 | 6.6 | 3 | 1440 | 3 | 380 | 50 |
| DHG 02-02 | 2 | 3/9 | 3.3 | 1.5 | 1440 | 3 | 380 | 50 |
| DHG 2.5-01 | 2.5 | 3/9 | 5.4 | 3 | 1440 | 3 | 380 | 50 |
| DHG 03-01 | 3 | 3/9 | 5.4 | 3 | 1440 | 3 | 380 | 50 |
| DHG 03-02 | 3 | 3/9 | 4.4 | 3 | 1440 | 3 | 380 | 50 |
| DHG 03-03 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 380 | 50 |
| DHG 05-02 | 5 | 3/9 | 2.7 | 3 | 1440 | 3 | 380 | 50 |
Parameter table
| Model | Rated Load | Dimensions(mm) | |||||||||||
| H | A | B | D | E | I | J | K | L | M | N | Chain | ||
| DHG 01-01 | 1T | 650 | 520 | 260 | 300 | 176 | Φ42 | 32 | Φ42 | 32 | 24 | 24 | Φ7.1 |
| DHG 1.5-01 | 1.5T | 800 | 615 | 295 | 430 | 265 | Φ49 | 40 | Φ49 | 40 | 30 | 30 | Φ10.0 |
| DHG 02-01 | 2T | 800 | 6115 | 295 | 430 | 265 | Φ49 | 40 | Φ49 | 40 | 30 | 30 | Φ10.0 |
| DHG 02-02 | 2T | 835 | 520 | 260 | 300 | 236 | Φ49 | 40 | Φ49 | 40 | 30 | 30 | Φ7.1 |
| DHG 2.5-01 | 2.5T | 845 | 615 | 295 | 430 | 265 | Φ59 | 48 | Φ59 | 48 | 35 | 35 | Φ11.2 |
| DHG 03-01 | 3T | 845 | 615 | 295 | 430 | 265 | Φ59 | 48 | Φ59 | 48 | 35 | 35 | Φ11.2 |
| DHG 03-02 | 3T | 960 | 615 | 295 | 430 | 320 | Φ59 | 48 | Φ59 | 48 | 35 | 35 | Φ10.0 |
| DHG 03-03 | 3T | 950 | 520 | 260 | 350 | 205 | Φ59 | 48 | Φ59 | 48 | 35 | 35 | Φ7.1 |
| DHG 05-02 | 5T | 1030 | 615 | 295 | 430 | 325 | Φ60 | 48 | Φ60 | 48 | 43 | 43 | Φ11.2 |
