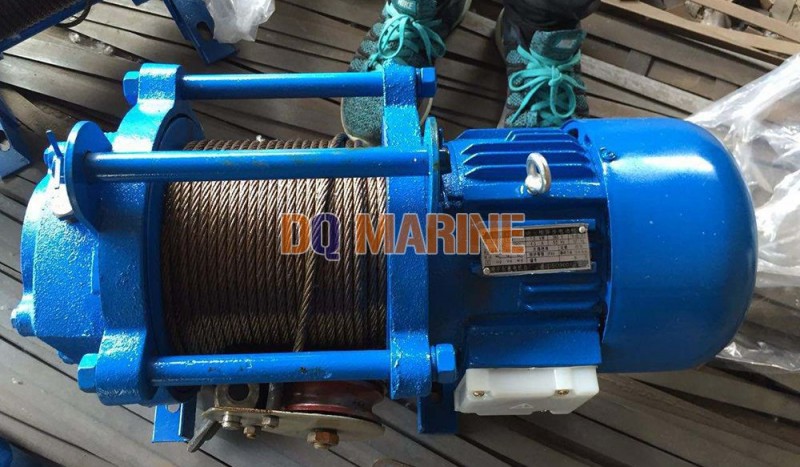

Multifunctional Elevator
Multifunctional Elevator Specification
Multi-function hoist is a kind of electric hoist can be used on the ground or in the air.
Widely used in construction industry.
High lifting Height.
Stable and reliable operation.
Product Details
The sizes table
| Model | Method | Rated Voltage(V) | Power( kw) | Lifting Weight(kg) | Lifting Speed(m/min) | Lifting Height(m) | Dia. of Rope( mm) | Net Weight(kg) |
| 300-600 | Single-Rope | 380 | 0.6 | 300 | 16 | 30-60 | 5 | 34 |
| Double-Rope | 600 | 8 | ||||||
| 500-1000 | Single-Rope | 380 | 1.1 | 500 | 14 | 30-100 | 6 | 49 |
| Double-Rope | 1000 | 7 | ||||||
| 500-1000 | Single-Rope | 380 | 1.5 | 500 | 25 | 30-100 | 6 | 55 |
| Double-Rope | 1000 | 12.5 | ||||||
| 500-1000 | Single-Rope | 380 | 1.5 | 500 | 12 | 30-100 | 6 | 55 |
| Double-Rope | 1000 | 6 | ||||||
| 750-1500 | Single-Rope | 380 | 1.5 | 750 | 18 | 30-100 | 7.7 | 65 |
| Double-Rope | 1500 | 9 | ||||||
| 1000-2000 | Single-Rope | 380 | 3 | 1000 | 16 | 30-100 | 11 | 80 |
| Double-Rope | 2000 | 8 | ||||||
| 400-800 | Single-Rope | 220 | 1.6 | 400 | 14 | 30-60 | 6 | 40 |
| Double-Rope | 800 | 7 |
