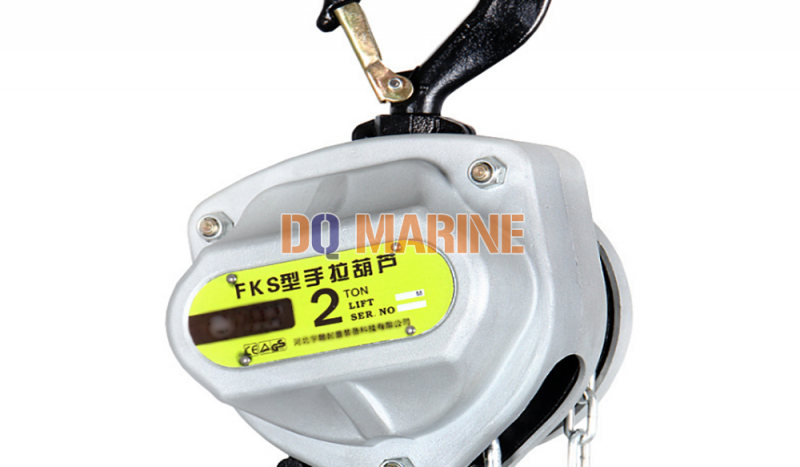

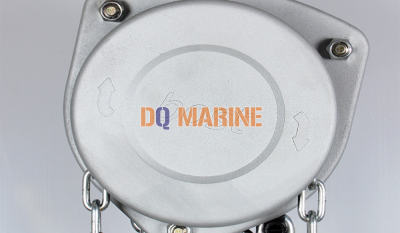

FKS Aluminum Alloy Chain Block
FKS Aluminum Alloy Chain Block Introduction
The body is made of aluminum alloys, antimagnetic and reduce self-weight.
Total-enclosed cover, anti-corrosion, dust-proof and water-proof.
Symmetric, synchronous gear is high precision and tenacity.
Two spring pawls as the braking system, make durability and safety doubly.
Position limited plate device can prevent the goods to low.
Product Details
The parameter table
| Model | HSZ-FKS 1T | HSZ-FKS 2T | HSZ-FKS 3T | HSZ-FKS 3T | HSZ-FKS 5T | |
| Rated Load (T) | 1 | 2 | 3 | 3 | 5 | |
| Lifting Height (M) | 2.5 | 2.5 | 3 | 3 | 3 | |
| Test Load (T) | 1.5 | 3 | 4.5 | 4.5 | 7.5 | |
| Effort Require to Lift Max Load (N) | 270 | 334 | 261 | 411 | 358 | |
| Dia. Of Chain (mm) | 6*18 | 8*24 | 8*24 | 10*30 | 10*30 | |
| Falls Of Load Chain | 1 | 1 | 2 | 1 | 2 | |
| Dimensions (mm) | A | 139.5 | 158 | 158 | 171.5 | 171.5 |
| B | 155 | 192 | 233 | 226 | 273 | |
| C | 385 | 485 | 585 | 575 | 665 | |
| D | 44 | 50.5 | 58.5 | 58.5 | 68.5 | |
| K | 29 | 34 | 40 | 40 | 47 | |
