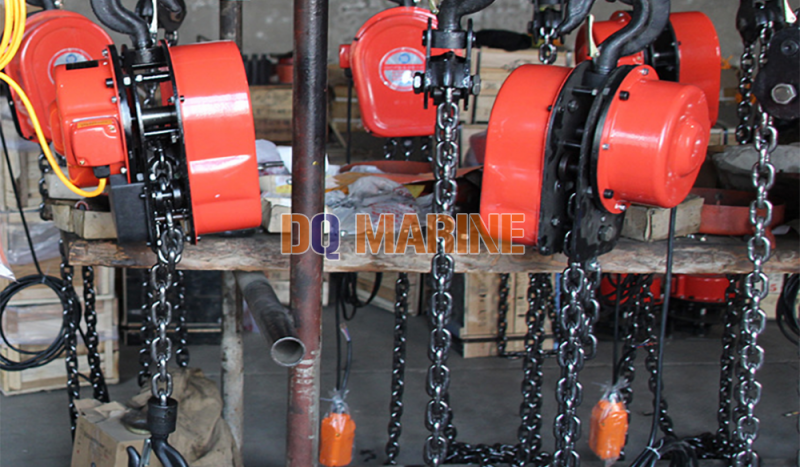

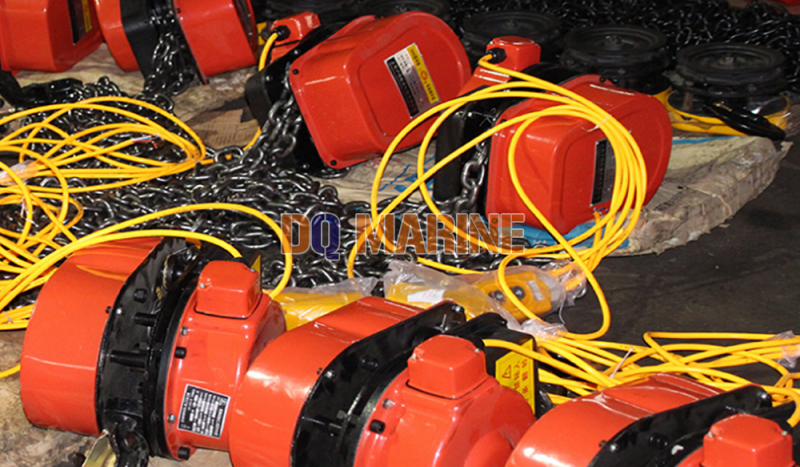

DHY Electric Chain Hoist
DHY Electric Chain Hoist Introduction
Motor is disc brake motor, brake fast and locate accurate.
Impact structure, easy to use, safe and reliable.
High Strength chrome alloy hooks, G80 alloy steel with heat treatment load chain.
Product Details
DHY Electric Chain Hoist sizes table
| MODEL | DHY1T | DHY1.5T | DHY2T | DHY3T | DHY5T | DHY10T | DHY20T |
| Rated Load(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Test Load(Gn) | 1.5 | 1.5 | 1.5 | 1.5 | 1.25 | 1.25 | 1.25 |
| Motor Power(kw) | 0.3 | 0.3 | 0.3 | 0.75 | 0.75 | 0.75 | 0.75 |
| Switch Type | Rain proof direct control switch | ||||||
| Voltage | 380v 50Hz | ||||||
| Lifting Speed(m/min) | 2 | 2 | 2 | 1 | 1 | 0.46 | 0.46 |
| Min Distance Between Two Hooks(mm) | 270 | 350 | 380 | 470 | 600 | 700 | 1000 |
| Falls of Chain | 1 | 1 | 2 | 2 | 2 | 4 | 8 |
| Lifting Height(m) | 3 | ||||||
| Dia. of Chain(mm) | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
| Net Weight(kg) | 26 | 32 | 30 | 37 | 54 | 88 | 195 |
| Gross Weight(kg) | 28 | 34 | 32 | 42 | 66 | 102 | 235 |
| Package Size (cm) | 33x34x34 | 33x34x34 | 33x34x34 | 33x34x34 | 43x36x43 | 520x50x43 | 72x72x85 |
| Extra Weight Per Meter of Extra Lift (kg) | 0.835 | 1.46 | 1.67 | 2.92 | 4.52 | 9.04 | 18.08 |
