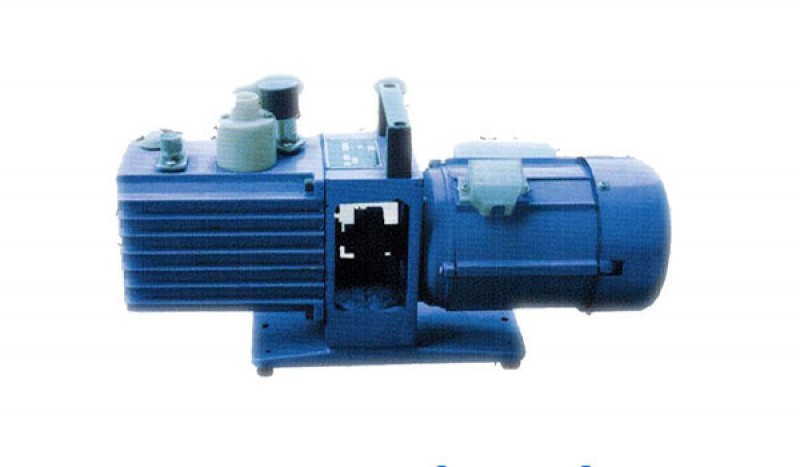

2XZ Series Double Stage Spiral Slice Vacuum Pump
China 2XZ Series Double Stage Spiral Slice Vacuum Pump:
The 2XZ series vacuum pump is a double-stage direct connection structure, its working performance is composed of two parts: high-pressure stage and low-pressure stage, its suction inlet is connected with the vacuum equipment, and a large amount of suction and discharge in the container during operation.When the equipment is vacuumed, the high-pressure stage exhaust valve plate will be closed, and the gas inhaled in the high-pressure stage will be transferred to the second stage, and the vacuum equipment will be vacuumed and discharged in the second stage.
Main Technical Data
| Model |
Pumping rate L/s |
Limiting pressure Pa |
Rev speed r/min |
Motor power KW |
| 2XZ-0.5 | 0.5 | 0.06 | 1440 | 0.18 |
| 2XZ-1 | 1 | 0.06 | 1440 | 0.25 |
| 2XZ-2 | 2 | 0.06 | 1440 | 0.37 |
| 2XZ-4 | 4 | 0.06 | 1440 | 0.55 |
| 2XZ-8 | 8 | 0.06 | 1410 | 1.1 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
