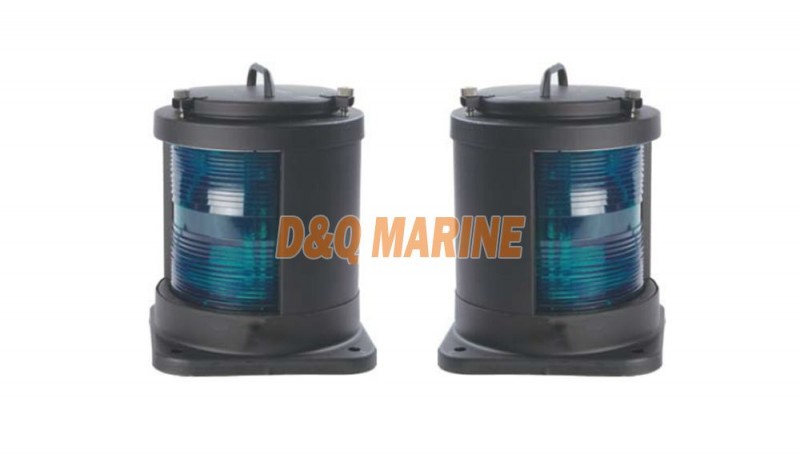

CXH-1D1 No.1 Single Navigation Signal Light
Category:
Navigation Signal Light
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CXH-1D1 No.1 Single Navigation Signal Light:
The scope of application

This light fits for the ships with length 50 m or above 50 m as lamp signal communication when night navigation.

Products feature

1. This lamp can be installed conveniently and its bulb can be replaced easily.

2. The shell is made of metal material (steel/stainless steel/ brass) by pressing mold, light surface is painted by marine special molding powder which has the feature of corrosion prevention and shock resistance.

3. The lampshade adopts Poly carbonate which has the feature of UV resistance and non-discoloring.

4. There are automatic leak holes on the bottom of light.

5. Cable outside diameter is Φ11mm.

Adopt standard and product certification

1. Conform to INTERNATIONAL REGULATIONS FOR PREVENTING COLLISIONS AT SEA 1972.

2. Conform to international standard of IEC60598-1-2008

3. Conform to performance standard of requirement about IMO Res.MSC.253 (83).

4. Conform to national standard of GB/T3028-2012

5. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

6. Approved by China Classification Society (CCS) and Type Approval of China Fishery Inspection Bureau (ZY).

7. Passed the European Union (CE) certification.

Installation

CXH-1D1 No.1 Single Navigation Signal Light Specification

Name Type Visibility Level arc Bulb Color Weight
Starboard light CXH1-1D1 3n.m 112.5° 220V/65W 110V/65W 24V/60W Green 2.8kg
Port light CXH2-1D1 3n.m 112.5° Red 2.8kg
Masthead light CXH3-1D1 6n.m 225° Transparent 2.8kg
Stern light CXH4-1D1 3n.m 135° Transparent/Yellow 2.8kg
All-round light CXH6-1D1 3n.m 360° Red/Green/Transparent/Yellow 2.6kg
