QBY QBK Series Pneumatic Diaphragm Pump
China QBY QBK Series Pneumatic Diaphragm Pump:
QBY series pneumatic diaphragm pump produced by the unit is a new type of transport machinery, the use of compressed air as a power source, for a variety of corrosive liquids, liquids with particles, high viscosity, volatile, flammable, highly toxic liquid, can be pumped out.

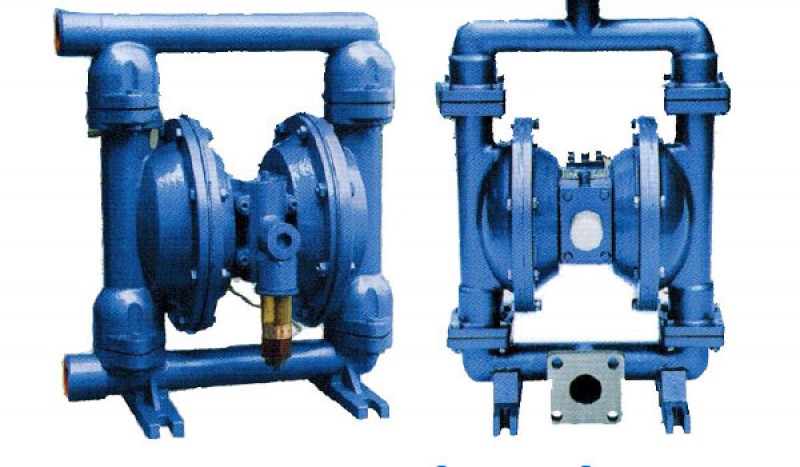

QBY QBK Series Pneumatic Diaphragm Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Suction m |
Max air supply pressure kgf/c㎡ |
| QBY-10 | 0.8 | 50 | 1 | 4-7.0 |
| QBY-15 | 1 | 50 | 1 | 4-7.0 |
| QBY-20 | 1.8 | 50 | 5 | 2-7.0 |
| QBY-25 | 2.4 | 50 | 5 | 2-7.0 |
| QBY-32 | 5.6 | 50 | 5 | 2-7.0 |
| QBY-40 | 8 | 50 | 5 | 2-7.0 |
| QBY-50 | 18 | 50 | 5 | 2-7.0 |
| QBY-65 | 24 | 50 | 5 | 2-7.0 |
| QBY-80 | 27 | 50 | 5 | 2-7.0 |
| QBY-100 | 40 | 50 | 5 | 2-7.0 |
