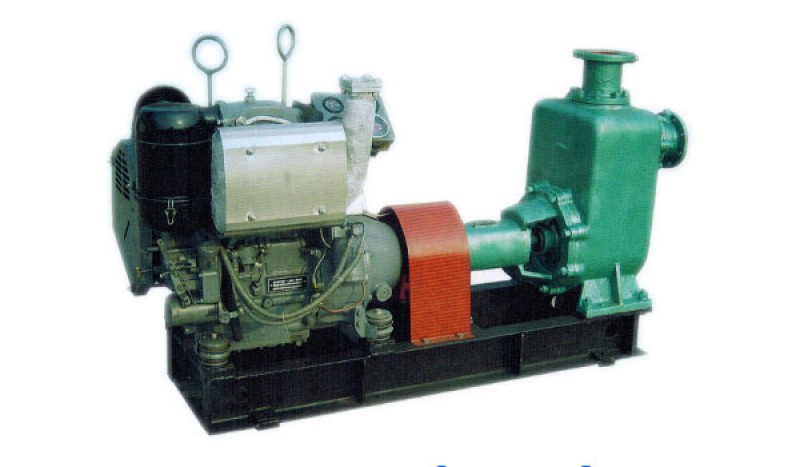

CYX Series Marine Diesel Engine-driven Emergency Fire Pump
China CYX Series Marine Diesel Engine-driven Emergency Fire Pump:
CYX series marine diesel engine-driven emergency fire pump group is mainly used for rapid delivery of the ship caught fire when the fire water use can also be used to water curtain spray system provides high-pressure fire extinguishing agent containing the water.
CYX series marine diesel engine-driven emergency fire pump group system using air cooling, and with manual,electric,flexible start and many other starting methods. This series pump has a working and reliable,operation simple,maintenance-free or with little maintenance,etc.,and thus can be used for ports,terminals,the reservoir area as an emergency fire-fighting equipment.Performance with fast self-priming pump can draw the fire area with water,the water supply to the fire engines.
Marine Diesel Engine-driven Emergency Fire Pump
Main Technical Data
| Model |
Flow rate Q （m³/h） |
Lift H (m) |
Rev speed（r/min） |
Motor power (KW) |
| 65CYX-40 | 25 | 40 | 3000 | 6 |
| 65CYX-65 | 30 | 65 | 3000 | 15 |
| 65CYX-85 | 35 | 85 | 3000 | 20 |
| 80CYX-40 | 45 | 40 | 3000 | 7.6 |
| 80CYX-65 | 50 | 65 | 3000 | 15 |
| 80CYX-86 | 60 | 86 | 3000 | 22 |
| 100CYX-40 | 100 | 45 | 3000 | 17 |
| 100CYX-60 | 100 | 65 | 3000 | 25 |
| 100CYX-86 | 100 | 86 | 3000 | 40 |
| 125CYX-100 | 150 | 100 | 3000 | 45 |
