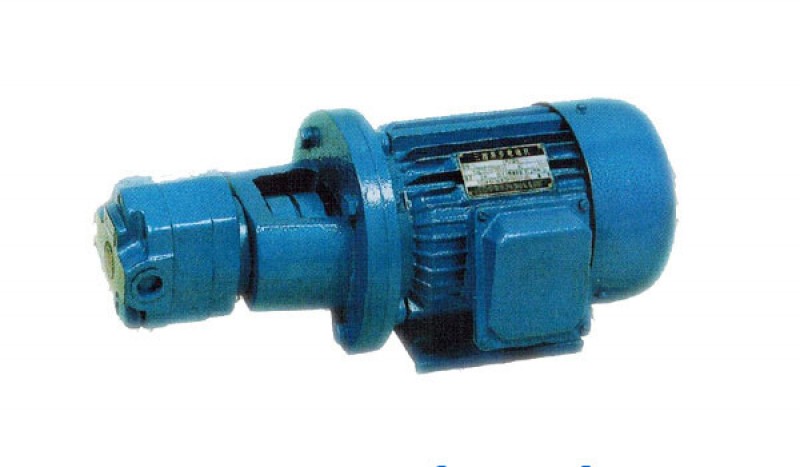

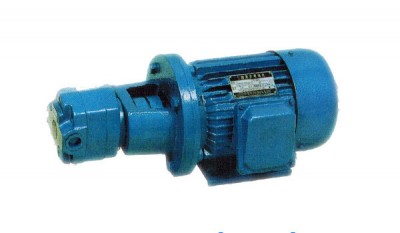

BBG Series Inner Clutch Cycloid Gear Pump
China BBG Series Inner Clutch Cycloid Gear Pump:
BBG cycloid gear pump is a positive displacement type internal gear pump, its internal gear is a circular tooth shape, the external gear (namely the inner rotor) for the short amplitude cycloid new gear pump.Due to the simple structure, low noise, smooth oil transfer, good self-absorption performance and good high speed characteristics, so in the low pressure hydraulic system is widely used, can be used as a power pump or lubricating pump and cooling pump.
Main Technical Data
| Model |
Capacity L/min |
Pressure MPa |
Rev speed r/min |
Motor power KW |
| BBG-4 | 4 | 2.45 | 1500 | 0.55 |
| BBG-6 | 6 | 2.45 | 1500 | 0.55 |
| BBG-10 | 10 | 2.45 | 1500 | 0.55 |
| BBG-16 | 16 | 2.45 | 1500 | 1.1 |
| BBG-20 | 20 | 2.45 | 1500 | 1.1 |
| BBG-25 | 25 | 2.45 | 1500 | 1.5 |
| BBG-32 | 32 | 2.45 | 1500 | 1.5 |
| BBG-40 | 40 | 2.45 | 1500 | 2.2 |
| BBG-50 | 50 | 2.45 | 1500 | 3 |
| BBG-63 | 63 | 2.45 | 1500 | 4 |
| BBG-80 | 80 | 2.45 | 1500 | 5.5 |
| BBG-100 | 100 | 2.45 | 1500 | 5.5 |
| BBG-125 | 125 | 2.45 | 1500 | 7.5 |
