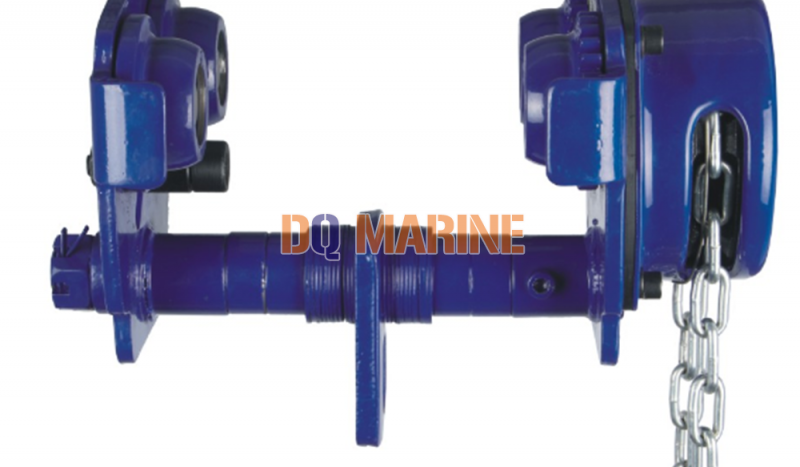

GCLZ Anti-Collision Manual Geared Trolley
GCLZ Anti-Collision Manual Geared Trolley Introduction
Manual trolley is a brief structure, easy to operate, small-size hoist, can be used with chain hoist, electric chain hoist, or other lifting hoist.
To compose lifting and transporting trolley by being installed on the bottom flange of I-Beam.
Product Details
The sizes table
| Model | 0. 5 | 1 | 2 | 3 | 5 | 10 | 20 | 30 | |
| Rated Load( T) | 0. 5 | 1 | 2 | 3 | 5 | 10 | 20 | 30 | |
| Test Road(T) | 0. 75 | 1.5 | 3 | 4. 5 | 7. 5 | 15 | 30 | 37. 5 | |
| Chain Pull withFull load(N) | 60 | 80 | 140 | 150 | 170 | 320 | 340 | 352 | |
| Dimensions(mm) | A | 248 | 280 | 318 | 340 | 365 | 410 | 475 | 392 |
| B | 196 | 236 | 273 | 320 | 366 | 389 | 798 | 625 | |
| C | 190 | 211 | 236 | 295 | 334 | 460 | 575 | 551 | |
| H | 108 | 115 | 130 | 164 | 177 | 237 | 300 | 260 | |
| I-Beam（mm） | 68-126 | 80-146 | 80-168 | 80-168 | 100-170 | 122-203 | 122-203 | 150-180 | |
| Net Weight(kg) | 9 | 14 | 16 | 24 | 36 | 90 | 215 | 230 | |
