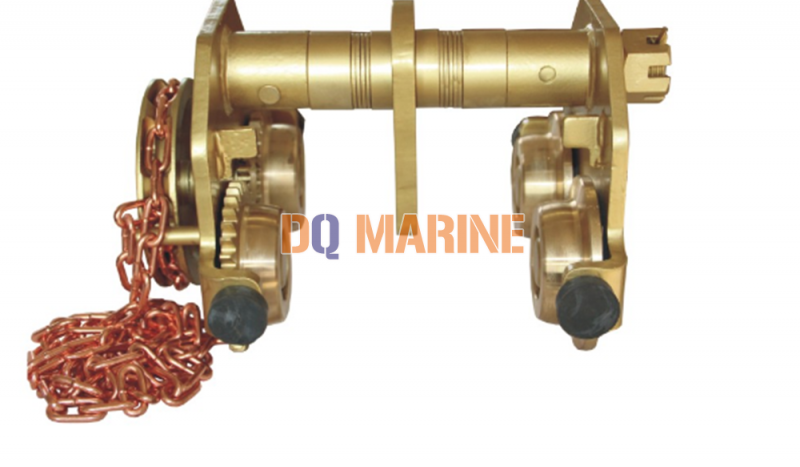

GCBL GCBT Explosion-Proof Trolley
GCBL GCBT Explosion-Proof Trolley Introduction
Manual trolley with explosion chain hoist and other lifting tools is installed on the I-Beam as a carrier.
Advance structure, beautiful appearance, high-load capacity, small hand force and pull force.
Application: install and disassemble in a factory, mine, wharf, and dock, warehouse and so on.
Product Details
The parameter table
| Model | GCBL1 | GCBL2 | GCBL3 | GCBL5 | GCBL10 | GCBL20 | |
| GCBT1 | GCBT2 | GCBT3 | GCBT5 | GCBT10 | GCBT20 | ||
| Rated Load(T) | 1 | 2 | 3 | 5 | 10 | 20 | |
| Test Load(KN) | 1.5 | 3 | 4.5 | 7.5 | 15 | 30 | |
| Lifting Height( m) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Dimensions( mm) | A | 220 | 225 | 290 | 340 | 390 | 880 |
| B | 170 | 190 | 220 | 240 | 265 | 265 | |
| D | 160 | 170 | 180 | 210 | 220 | 320 | |
| S | 260 | 290 | 320 | 355 | 410 | 510 | |
| I-Beam(mm) | C | 90-122 | 102-152 | 110-165 | 122-172 | 130-210 | 130-210 |
| Net Weight(kg) | GCBT | 11.5 | 16.5 | 22.5 | 29.5 | 46.5 | 106 |
