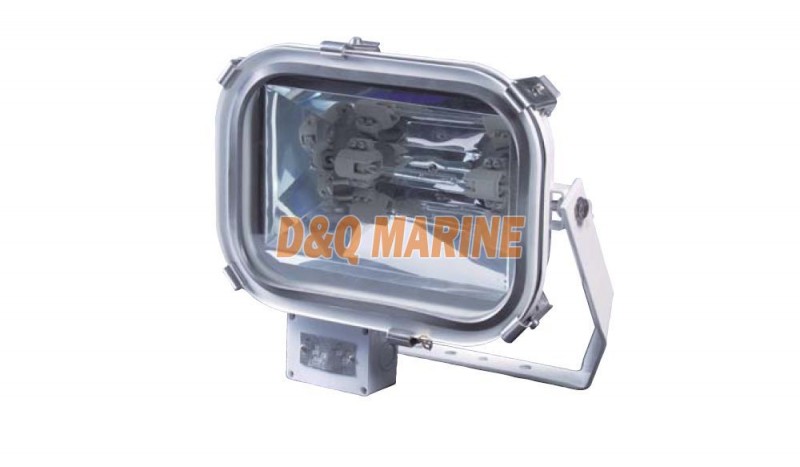

TG18 Spot Light
The scope of application
This product is designed to use for illumination at all kinds of ship, dock, port and wharf, storage yard and gym etc. outdoor workplace like above.
Products feature
1. Easy to replace the bulbs.
2. The body of light is made of good quality stainless steel material with excellent corrosion resistance.
3. The shade adopt toughened glass.
4. The body of light can be adjusted 90 degree up and 45 degree down.
5. High-pure aluminum reflector with perfect reflective effect.
6. The cable outside diameter is Φ10～Φ14mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
Installation
TG18 Spot Light Specification
| Type | TG18 | ||
| Voltage(V) | 220V/50HZ | ||
| Llluminant | Tungsten Halogen Lamp | ||
| Power(W) | 200 | 300 | 500 |
| Luminous Flux(Lm) | 3300 | 4800 | 8500 |
| Lamp Holder | R7S | ||
| Protection Class | IP56 | ||
| Weight( Kg) | 5.5 | ||
