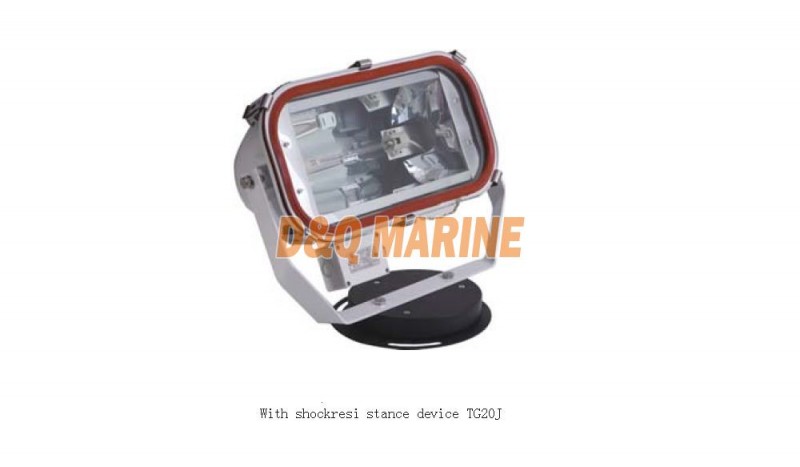

TG20J Spot Light:
The scope of application
This product is designed to use for illumination as flood lighting at all kinds of ship, dock, port and wharf, storage yard and gym etc. outdoor workplace like above.
Products feature
1. The body of light is made of good quality stainless steel material by compression molding with excellent corrosion resistance.
2. The body of light can be adjusted 90 degree up and 45 degree down.
3. High-pure aluminum reflector with perfect reflective effect.
4. Can be installed shock absorber in the bottom with better effect.
5. The cable outside diameter is Φ10～Φ14mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
4. Approved by China Classification Society (CCS).
Installation
TG20J Spot Light Specification
| Type | TG20J | |
| Power(W) | 1000 | |
| Voltage(V) | 220 | |
| Lamp Holder | R7S | |
| Llluminant | Tungsten Halogen Light | |
| Luminous Flux(Lm) | 22000 | |
| Protection Class | IP56 | |
| Weight( Kg) | 9.1 | |
