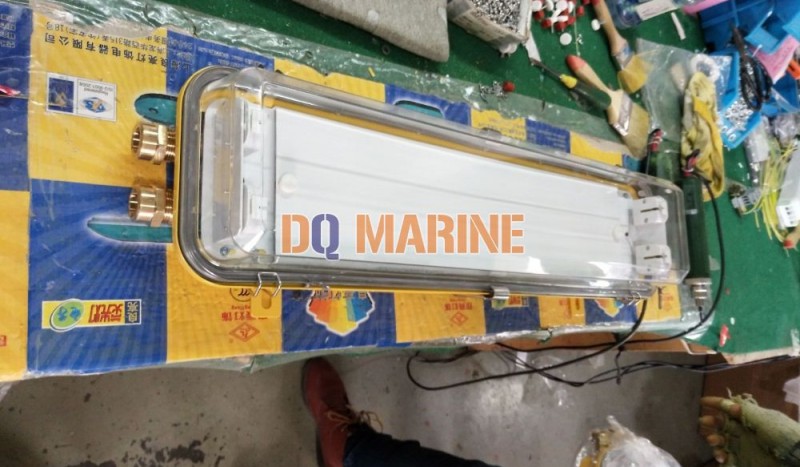

CFYD20-2 Explosion Proof Fluorescent Light
China CFYD20-2 Explosion Proof Fluorescent Light:
CFYD20-2 Explosion Proof Fluorescent Light is used for illumination for ship, oil exploit platform, chemical and explosive gas atmospheres zone 1, zone 2.Temperature class T1 ~ T5 explosion dangerous places in the general distribution area.
Explosion Proof Fluorescent Light Specification
| Type | CFYD20-2/2E | CFYD30-2/2E | CFYD40-2/2E |
| L1(mm) | 742 | 1042 | 1342 |
| L2(mm) | 480 | 700 | |
| Explosion Proof Mark | Ex emb‖T6Gb | ||
| Power(W) | 20WX2 | 30WX2 | 40WX2 |
| Voltage(V) | 220/110/24 | ||
| Lamp Holder | Fa6 | ||
| Protection Class | IP56 | ||
| Weight( Kg) | 5.7 | 6.5 | 7.2 |
