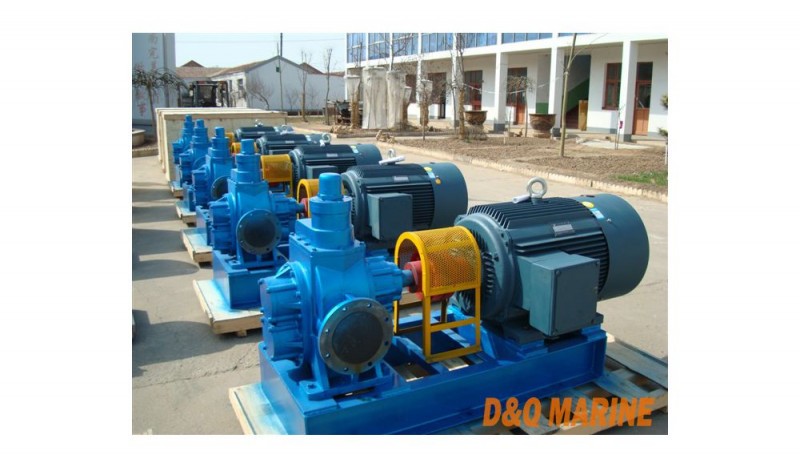

KCB gear pump
KCB Gear pump
KCB series of gear pump is used to deliver non-corrosive lubricating oil at temperature below 80degree or equivalent liquid without solid particles and fibres and with the viscosity of 5 to 1500cst.
KCB series gear pump are mainly composed of gears, axles, pump body and cap, safety valve and axle-end seals etc. The heat-tested gears possess the advantage of higher hardness and intensity and fixed onto the axles rotating inside the replaceable axle-sleeves. All pump parts can be automatically lubricated by delivering medium when the pump is working.
Technical parameter
| Model | Capacity | Speed | Exhaust | NPSHr | Efficiency | Motor | |
| m3/h | rpm | Pressure(Mpa) | m | % | Power(Kw) | Model | |
| KCB-18.3 | 1.1 | 1400 | 1.45 | 5 | 59 | 1.5 | Y90L-4 |
| KCB-33.3 | 2 | 1420 | 1.45 | 5 | 59 | 2.2 | Y100L1-4 |
| KCB-55 | 3.3 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 |
| KCB-83.3 | 5 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L1-4 |
| KCB-135 | 8 | 940 | 0.33 | 5 | 46 | 2.2 | Y112M-6 |
| KCB-200 | 12 | 1440 | 0.33 | 5 | 46 | 4 | Y112M-4 |
| KCB-300 | 18 | 960 | 0.36 | 5 | 42 | 5.5 | Y132M2-6 |
| KCB-483.3 | 29 | 1440 | 0.36 | 5.5 | 42 | 11 | Y160M-4 |
| KCB-633 | 38 | 970 | 0.28 | 6 | 43 | 11 | Y160L-6 |
| KCB-960 | 58 | 1470 | 0.28 | 6.5 | 43 | 22 | Y180L-4 |
| KCB-1200 | 72 | 740 | 0.6 | 7 | 43 | 37 | Y280S-8 |
| KCB-1600 | 95 | 980 | 0.6 | 7 | 43 | 45 | Y280S-6 |
