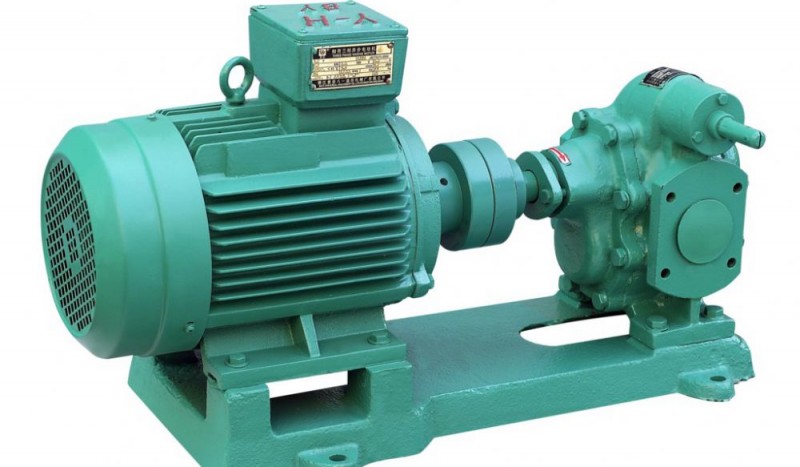

2CY gear pump
2CY gear pump
The 2CY gear pump is suitable for conveying various fluid lubricity of a temperature. This pump is not applicalbe to transporta corrosice and contain highly volatile is not higher than 70.
The viscosity range from 5cst to 1500 cst.
The 2CY not have safety valve.
Technical parameter:
| Model | Capacity | Speed | Exhaust | NPSHr | Efficiency | Motor | |
| m3/h | rpm | Pressure(Mpa) | m | % | Power(Kw) | Model | |
| 2CY-1.1/1.45 | 1.1 | 1400 | 1.45 | 5 | 59 | 1.5 | Y90L-4 |
| 2CY-2/1.45 | 2 | 1420 | 1.45 | 5 | 59 | 2.2 | Y100L1-4 |
| 2CY-3.3/0.33 | 3.3 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 |
| 2CY-5/0.33 | 5 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L1-4 |
| 2CY-8/0.33 | 8 | 940 | 0.33 | 5 | 46 | 2.2 | Y112M-6 |
| 2CY-12/0.33 | 12 | 1440 | 0.33 | 5 | 46 | 4 | Y112M-4 |
| 2CY-18/0.36 | 18 | 960 | 0.36 | 5 | 42 | 5.5 | Y132M2-6 |
| 2CY-29/0.36 | 29 | 1440 | 0.36 | 5.5 | 42 | 11 | Y160M-4 |
| 2CY-38/0.28 | 38 | 970 | 0.28 | 6 | 43 | 11 | Y160L-6 |
| 2CY-58/0.28 | 58 | 1470 | 0.28 | 6.5 | 43 | 22 | Y180L-4 |
