300Kn.m swing type electro-hydraulic steering gear
16-500Kn.m swing type electro-hydraulic steering gear

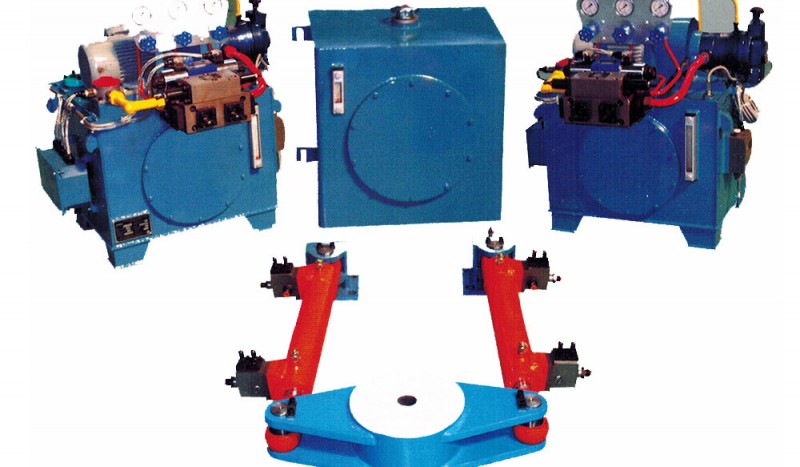

This series of swing-type electro-hydraulic steering gear mainly consists of a set of two piston-type cylinders, two oil pump power units, one reserve fuel tank, and an additional emergency pump for accumulating pressure in the inland jet stream area. Or a set of DC motor pump sets to meet the emergency requirements of the CCS specification. The control methods include manual reversing valve direct control, electric control and pump control. The electric control servo can be used with any type of automatic steering instrument and follower steering instrument.
Drawing
Technical specifications
|
Torque （Kn.m） |
A | B |
Rudder radius R |
Center height H |
Rudder handle thickness h |
Rudder diameter d |
| 8-12 | 970 | 500 | 200 | 110 | 120 | ≤130 |
| 16-25 | 1269 | 700 | 300 | 110 | 150 | ≤160 |
| 30-40 | 1170 | 790 | 320 | 115 | 150 | ≤160 |
| 50-63 | 1420 | 940 | 320 | 145 | 180 | ≤180 |
| 75-125 | 1700 | 1080 | 400 | 145 | 220 | ≤200 |
| 160-250 | 2250 | 1440 | 650 | 200 | 400 | ≤280 |
| 300-450 | 3100 | 1800 | 700 | 260 | 550 | ≤340 |
| 500 | 3500 | 1900 | 720 | 260 | 600 | ≤360 |
