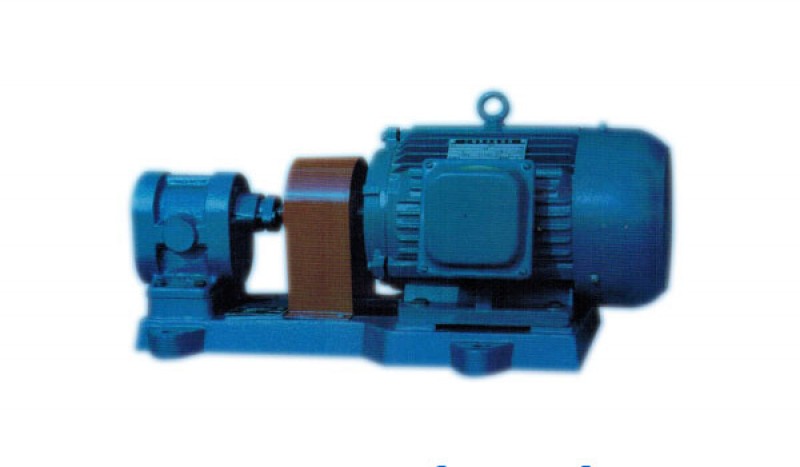

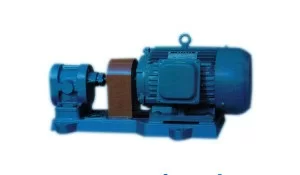

2CY Series Marine Gear Pump
China 2CY Series Marine Gear Pump:
2CY Series of gear pump is used to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-1500CST.
External installation dimension
Main Technical Data
| Model |
Pump flow rate (L/min) |
Rev speed（r/min） |
Discharge pressuer (Mpa) |
Motor power (KW) |
| 2CY-1.08/2.5 | 18 | 1440 | 2.5 | 1.5 |
| 2CY-2.1/2.5 | 35 | 1440 | 2.5 | 3 |
| 2CY-3/2.5 | 50 | 1440 | 2.5 | 4 |
| 2CY-4.2/2.5 | 70 | 1440 | 2.5 | 5.5 |
| 2CY-7.5/2.5 | 125 | 1440 | 2.5 | 7.5 |
| 2CY-12/2.5 | 200 | 1460 | 2.5 | 11 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
