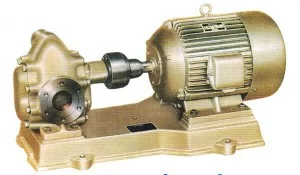

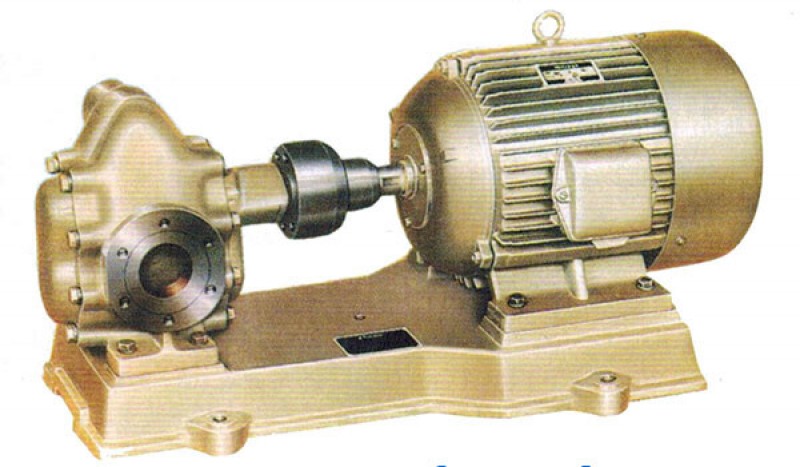

KCB Series Marine Gear Pump
China KCB Series Marine Gear Pump:
KCB series of gear pumps is used to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-1500CST.
External installation dimension
Main Technical Data
| Model |
Pump flow rate (L/min) |
Rev speed（r/min） |
Discharge pressuer (Mpa) |
Motor power (KW) |
| KCB-18.3 | 18.3 | 1400 | 1.45 | 1.5 |
| 2CY-1.1/1.45 | 18.3 | 1400 | 1.45 | 1.5 |
| KCB-33.3 | 33.3 | 1420 | 1.45 | 2.2 |
| 2CY-2/1.45 | 33.3 | 1420 | 1.45 | 2.2 |
| KCB-55 | 55 | 1400 | 0.33 | 1.5 |
| 2CY-3.3/0.33 | 55 | 1400 | 0.33 | 1.5 |
| 2CY-3.3/0.8 | 55 | 1420 | 0.8 | 3 |
| KCB-83.3 | 83.3 | 1400 | 0.33 | 2.2 |
| 2CY-5/0.33 | 83.3 | 1400 | 0.33 | 2.2 |
| 2CY-5/0.8 | 83.3 | 1420 | 0.8 | 4 |
| KCB-200 | 200 | 1420 | 0.33 | 4 |
| 2CY-12/0.33 | 200 | 1440 | 0.33 | 4 |
