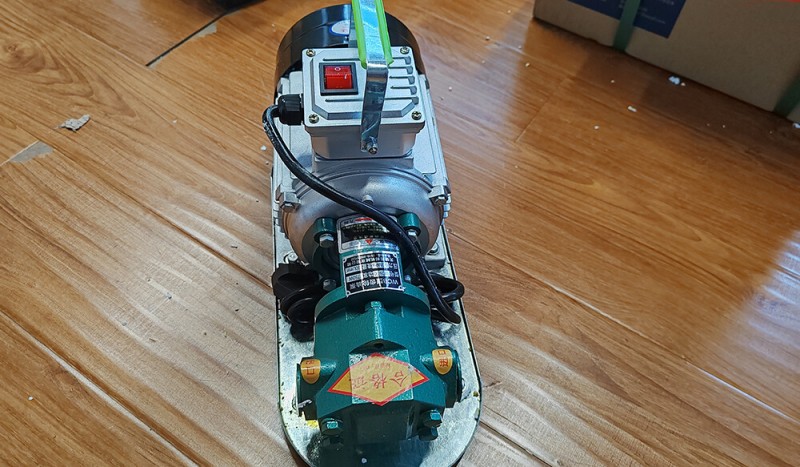

WCB Series Portable Gear Pump
China WCB Series Portable Gear Pump:
1、Purpose
The WCB type gear oil pump belongs to the low-pressure knife mounted lifting energy and material oil pump, which is most suitable for converting oil drums of units without power supply to oil. It is also used for oil transportation in refineries, power plants, power stations, substations (rooms), and oil depots, as well as for thin oil refining and transportation in thin oil lubrication systems. For example, when transporting lubricating oil, beverages, low corrosive water, etc., please choose an integral stainless steel gear pump, which is produced by our factory.
| Model | Dischrge MPa | Flow Rat L/min | Internal thread size | Connector outer diameter | Power KW | Speed r/min | Voltage |
| WCB-30 | 0.3 | 15 | 3/8" | 25mm | 0.75KW | 1400 | 220V/380 |
| 0.3 | 30 | 3/8" | 25mm | 0.75KW | 2800 | 220V/380 | |
| WCB-50 | 0.3 | 25 | 3/8" | 25mm | 0.75KW | 1400 | 220V/380 |
| 0.3 | 50 | 3/8" | 25mm | 0.75KW | 2800 | 220V/380 | |
| WCB-75 | 0.3 | 37.5 | 1" | 32mm | 0.75KW | 1400 | 220V/380 |
| 0.3 | 75 | 1" | 32mm | 0.75KW | 2800 | 220V/380 | |
| WCB-100 | 0.3 | 50 | 1" | 32mm | 1.1KW | 1400 | 220V/380 |
| 0.3 | 100 | 1" | 32mm | 1.1KW | 2800 | 220V/380 | |
| 0.3 | 100 | 1" | 32mm | 1.5KW | 2800 | 220V | |
| WCB-150 | 0.3 | 150 | 1.5" | 48mm | 1.5KW | 2800 | 220V |
| WCB-200 | 0.3 | 200 | 1.5" | 48mm | 2.2KW | 2800 | 220V |
