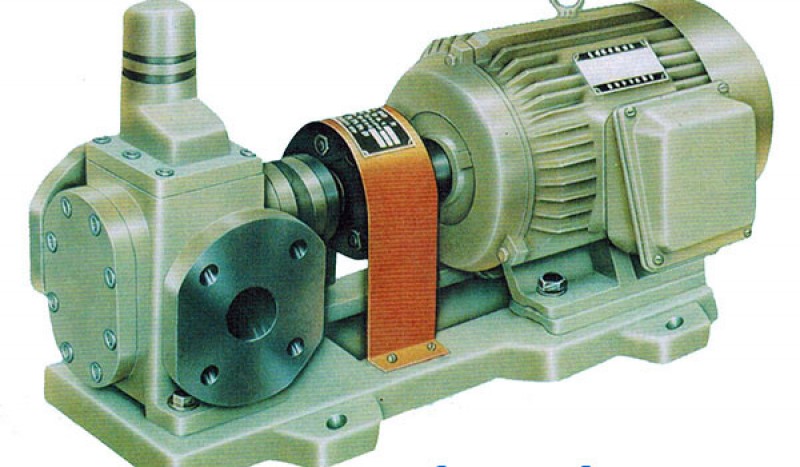

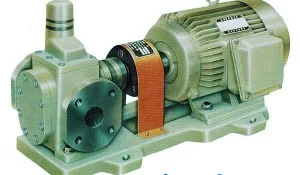

YCB Series Marine Gear Pump
China YCB Series Marine Gear Pump:
YCB series gear pump is used in hydraulic system to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-1500CST.
External installation dimension
Main Technical Data
| Model |
Flow rate (m³/h) |
Rev speed r/min |
Discharge pressuer (Mpa) |
Motor power (KW) |
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 0.75 |
| YCB0.6-2.5 | 0.6 | 910 | 2.5 | 1.1 |
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 0.75 |
| YCB1.6-2.5 | 1.6 | 940 | 2.5 | 2.2 |
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 1.5 |
| YCB3.3-2.5 | 3.3 | 960 | 2.5 | 5.5 |
| YCB4-0.6 | 4 | 940 | 0.6 | 1.5 |
| YCB4-2.5 | 4 | 960 | 2.5 | 5.5 |
| YCB8-0.6 | 8 | 960 | 0.6 | 3 |
| YCB8-2.5 | 8 | 970 | 2.5 | 11 |
| YCB10-0.6 | 10 | 960 | 0.6 | 4 |
| YCB20-0.6 | 10 | 970 | 2.5 | 11 |
| YCB20-2.5 | 20 | 970 | 0.6 | 7.5 |
| YCB25-0.6 | 20 | 980 | 2.5 | 11 |
| YCB25-2.5 | 25 | 970 | 0.6 | 11 |
| YCB30-0.6 | 25 | 980 | 2.5 | 37 |
| YCB30-2.5 | 30 | 970 | 0.6 | 15 |
| YCB40-0.6 | 30 | 980 | 2.5 | 45 |
| YCB40-2.5 | 40 | 970 | 0.6 | 1.5 |
