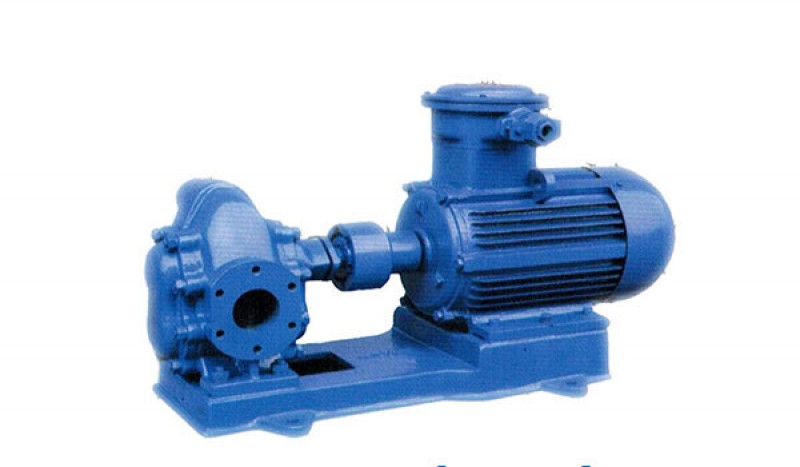

2CY KCB Series Gear Oil Line Pump
China 2CY KCB Series Gear Oil Line Pump:
This pump is suitable for conveying various lubricity of liquid, the temperature is not higher than 70 ℃, if you need high temperature 200 ℃, but with high temperature resistant material.This pump is not suitable for conveying corrosive, containing hard particles or fiber, highly volatile or low flash point liquid, such as gasoline, benzene.
Main Technical Data
| Model |
Capacity m³/h |
Outlet pressure MPa |
Suction m |
Motor power KW |
| KCB-18.3 | 18.3 | 1.45 | 5 | 1.5-4 |
| KCB-33.3 | 33.3 | 1.45 | 5 | 2.2-4 |
| KCB-55 | 55 | 0.33 | 5 | 1.5-4 |
| KCB-55 | 55 | 0.5 | 5 | 2.2-4 |
| KCB-88.3 | 83.3 | 0.33 | 5 | 2.2-4 |
| KCB-88.3 | 83.3 | 0.5 | 5 | 3.0-4 |
| KCB-133 | 133 | 0.33 | 5 | 3.0-4 |
| KCB-200 | 200 | 0.13 | 5 | 4.0-4 |
| KCB-200 | 200 | 0.33 | 5 | 5.5-4 |
| KCB-200 | 200 | 0.6 | 5 | 5.5-4 |
| KCB-300 | 200 | 1 | 5 | 7.5-4 |
| KCB-300 | 300 | 0.36 | 5 | 5.5-4 |
| KCB-483.3 | 300 | 0.6 | 5 | 7.5-4 |
| KCB-483.3 | 493.3 | 0.36 | 5 | 7.5-4 |
| KCB-633 | 483.3 | 1 | 5 | 11.0-4 |
| KCB-633 | 633 | 0.28 | 5 | 11.0-6 |
| KCB-960 | 633 | 0.58 | 5 | 22.0-4 |
| KCB-960 | 960 | 0.3 | 5 | 30.0-4 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
