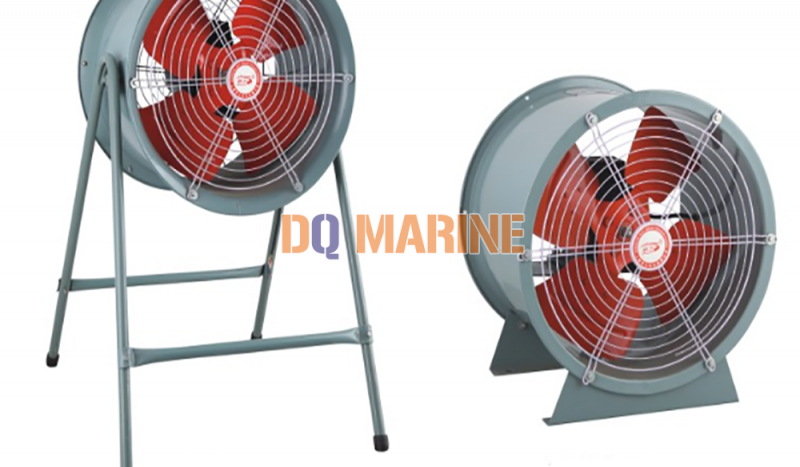

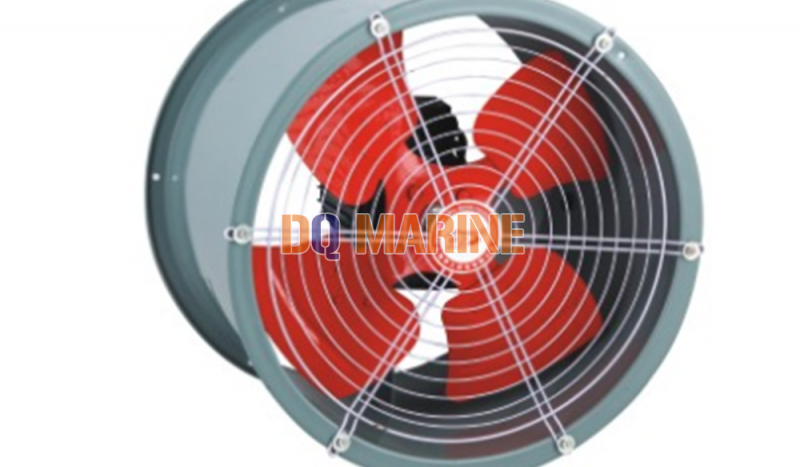

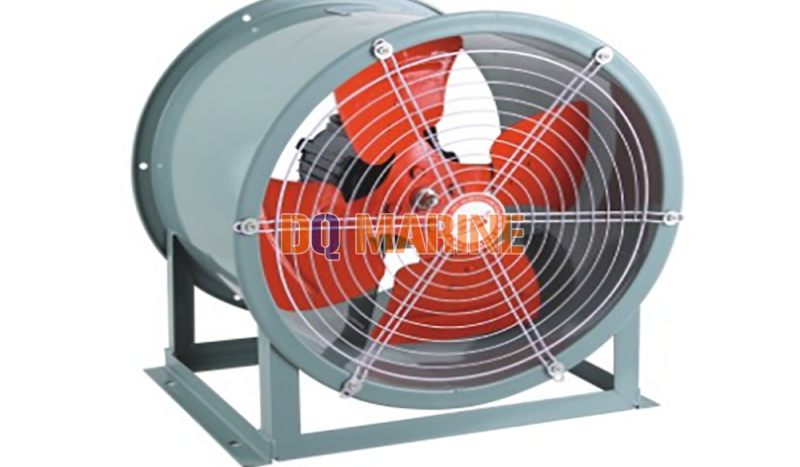

SF Series Axial-Flow Fan:
SF Series Axial-Flow Fan Introduction
The axial-flow fan of SF series is blessed with smooth streamline surface, stable operation, and high efficiency, low noise and less energy consumption and so on.
And classed into the following four models according to use requirements: manifold pipeline type, stationary type, wall type and position type, as 12 models according to impeller diameter.
Main Technical Parameter
| Machine No. | Rotation Speed (r/min) | Maching Motor (Kw) | Volume Flow (m3/h) | Total Pessure (Pa) | Noise (dB) |
| 2 | 2800 | 0.09 | 1300 | 140 | 62 |
| 1450 | 0.04 | 600 | 20 | 57 | |
| 2.5 | 2800 | 0.25 | 2100 | 215 | 65 |
| 1450 | 0.09 | 1000 | 35 | 59 | |
| 3 | 2800 | 0.37 | 3000 | 230 | 68 |
| 1450 | 0.12 | 2000 | 59 | 61 | |
| 3.5 | 2800 | 0.75 | 6000 | 260 | 72 |
| 1450 | 0.25 | 3000 | 78 | 73 | |
| 4 | 2800 | 1.1 | 8513 | 380 | 77 |
| 1450 | 0.55 | 5870 | 149 | 73 | |
| 960 | 0.25 | 4500 | 80 | 64 | |
| 4.5 | 1450 | 0.55 | 8000 | 160 | 73 |
| 5 | 1450 | 0.75 | 10000 | 170 | 74 |
| 960 | 0.37 | 7700 | 120 | 66 | |
| 5.5 | 1450 | 1.1 | 13000 | 200 | 76 |
| 960 | 0.37 | 8500 | 140 | 68 | |
| 6 | 1450 | 2.2 | 18700 | 300 | 80 |
| 960 | 1.1 | 14500 | 180 | 75 | |
| 7 | 1450 | 3 | 24500 | 350 | 85 |
| 960 | 2.2 | 22000 | 210 | 80 | |
| 8 | 1450 | 4 | 37200 | 380 | 88 |
| 960 | 2.2 | 28000 | 230 | 82 | |
| 10 | 960 | 4 | 50000 | 260 | 88 |
