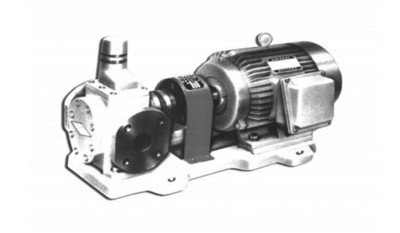

YCB-10 YCB series circular gear pump:
China YCB-10 YCB series circular gear pump:
It applies to delivery non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃.It applies to hydraulic system, too.
| Main Technical Data | ||||
| Model |
Capacity Q |
Exhaust pressure MPa |
Speed r/min |
Power |
| YCB0.6-0.6 | 0.6-1.2 | 0.6 | 1420 | 0.75 |
| YCB0.6-1.6 | 0.6-1.2 | 1.6 | 1420 | 1.1 |
| YCB1.6-0.6 | 1.6-3.0 | 0.6 | 1415 | 0.75 |
| YCB1.6-1.6 | 3.3-6 | 1.6 | 1410 | 1.5 |
| YCB3.3-0.6 | 3.3-6 | 0.6 | 920 | 5.5 |
| YCB4-0.6 | 4.0-7.2 | 0.6 | 925 | 1.5 |
| YCB-4-1.6 | 4.0-7.2 | 1.6 | 670 | 5.5 |
| YCB8-0.6 | 8.0-14.4 | 0.6 | 675 | 3 |
| YCB8-1.6 | 8.0-14.4 | 1.6 | 680 | 11 |
| YCB10-0.6 | 10.0-18 | 0.6 | 1435 | 4 |
| YCB10-1.6 | 10.0-18 | 1.6 | 1430 | 11 |
| YCB20-0.6 | 20 24 | 0.6 | 940 | 7.5 |
| YCB25-0.6 | 25 30 | 0.6 | 945 | 11 |
| YCB30-0.6 | 30 36 | 0.6 | 710 | 11 |
| YCB40-0.6 | 40 48 | 0.6 | 710 | 15 |
| YCB50-0.6 | 50 60 | 0.6 | 950 | 22 |
| YCB60 | 60 73 | 1.0 | 1460 | 30.0 |
| YCB80 | 80 97 | 0.6 | 945 | 22 |
