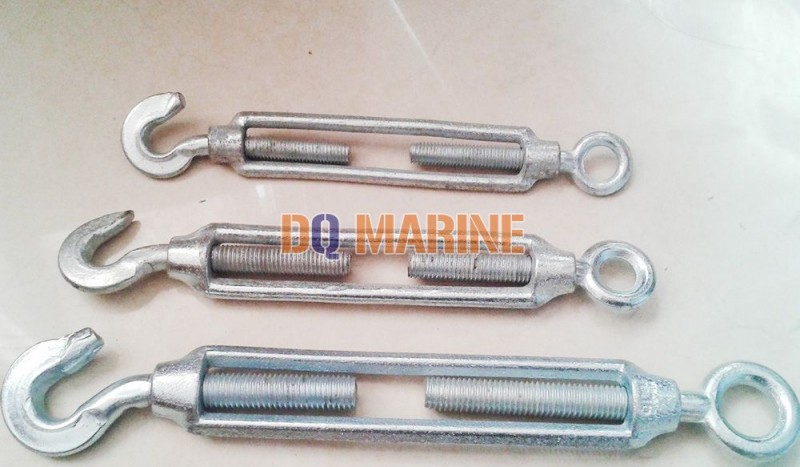

Commercial Type Turnbuckles
Description
Commercial Type Turnbuckles adopt national standard, the body material is malleable iron, and the other part material is Q235 steel. This product is built by casting process, the surface can be electro galvanized.
Product Details
Commercial Type Turnbuckles sizes table
| Size (mm) | WLL (Kg) | Dimensions (mm) | Weight (Ibs) | |||||
| B | C | D | E | F | L | |||
| 6x100 | 100 | 145 | 215 | 12 | 10 | 6 | 100 | 0.35 |
| 8x125 | 200 | 185 | 280 | 14 | 12 | 8 | 125 | 0.53 |
| 10x150 | 300 | 210 | 325 | 16 | 14 | 9 | 150 | 0.79 |
| 12x200 | 500 | 275 | 430 | 19 | 18 | 11 | 200 | 1.41 |
| 16x250 | 1000 | 345 | 540 | 23 | 24 | 14 | 250 | 3.18 |
| 20x300 | 1500 | 435 | 670 | 28 | 26 | 18 | 300 | 4.96 |
| 22x330 | 2200 | 480 | 740 | 34 | 32 | 20 | 330 | 7.79 |
| 24x350 | 3000 | 555 | 830 | 36 | 36 | 21 | 350 | 9.58 |
