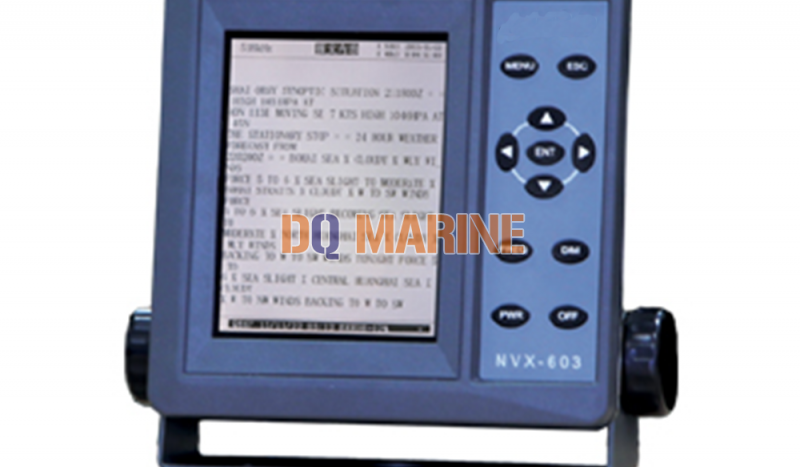

NVX603 NAVTEX Receiver
NVX603 NAVTEX Receiver Introduction
1. Fully meets the latest standards and IMO resolution MSC.148 (77).
2. Dual channel reception simultaneously, support message with more than 500 characters.
3. Support the outside the printer, non-volatile memory can store more than 200 messages.
4. Compact antenna with high performance and high reliable.
5. Large Screen color LCD display, multiple data interface.
NVX603 Product Technical Parameter
| Receiving Frequency/Mode | 518KHz / 486KHz, 4209.5KHz, F1B |
| Sensitivity | 2µV e.m.f. (50Ω), 4% error rate |
| Message Storage | 600 messages *2 channels |
| ID Storage | 200*2 channels |
| Display Modes | Message, List, Data |
| Input Protection | Withstands 30Vrms, >15min |
| Spurious Emission | <1 nW |
| LEC Size | 7 inch TFT color LCD(320*240) |
| Printer System | Option |
| Antenna Type | NVX-6V V-field with preamp |
| Impedance | 50Ω |
| Power Supply for preamp | +9V |
| Input | IEC61162 NMEA0183 / INS |
| Output | Print/ ALRM/ INS |
| Power Supply | DC12-36V 20W |
| Environment Temperature - Main Unit | -15°C to +55 °C |
| Environment Temperature - Antenna | -25°C to +70 °C |
| Water Proof - Main Unit/Antenna | IPX5/IPX6 |
