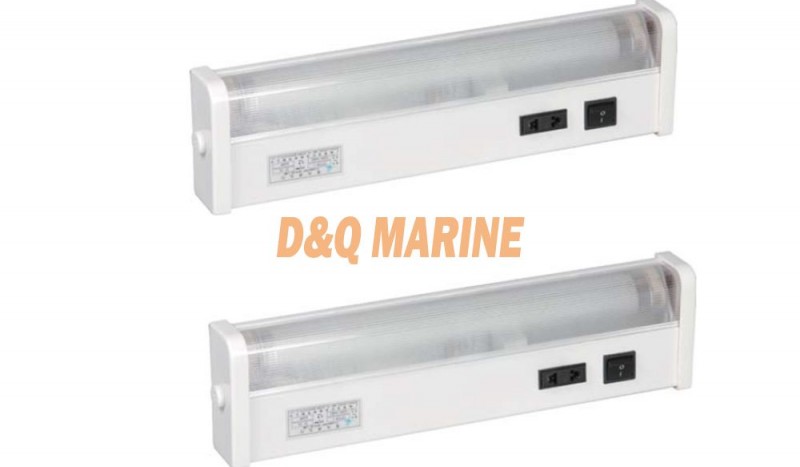

ZYT08/12 Bedside Lamp
The scope of application
The products are designed as bedside lamp to use at the living room in ship cabin.
Products feature
1. The shell of light is made of good quality cold rolled steel sheets by compression molding.
2. The shade of light adopt the figure oral poly carbonate injection molding.
3. This light can be equipped with switch and socket device
4. The cable outside diameter is Φ6-Φ8mm
Adopt standard and product certification
1. Conform to standard of IEC60598-1-2008.
2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
3 .Approved by CHINA CLASSIFICATION SOCIETY (CCS).
4. Passed the European Union (CE) certification.
Installation
ZYT08/12 Bedside Lamp Specification
| Type | ZYT08-1 | ZYT12-1 |
| L(mm) | 347 | 488 |
| L1(mm) | 194 | 350 |
| Power | 8W | 12W |
| Weight(kg) | 0.92 | 1.3 |
| Voltage/Frequency | 110V/60HZ,220V/60HZ,220V/50HZ | |
| Lamp Holder | G5 | |
| Protection Class | IP34 | |
