Eye Screw DIN 580
Description

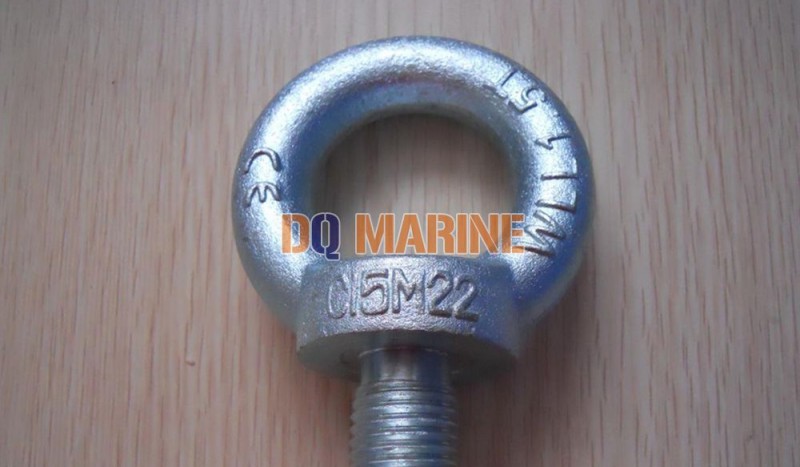

Eye screw DIN 580 adopts German standard, the material is Q235 steel, this production is made by die forging technology, and the surface can be treated of electro galvanizing, zinc plating, hot galvanizing.
Details
Eye Screw DIN 580 sizes table
| Size (mm) | WLL (t) | Weight 100pcs (Ibs) | Dimensions (mm) | ||||||
| d1 | d2 | d3 | b | e | h | k | |||
| M6 | 0.14 | 11 | 17 | 28 | 16 | 13 | 6 | 17 | 6 |
| M8 | 0.14 | 13 | 20 | 36 | 20 | 15 | 6 | 18 | 8 |
| M10 | 0.23 | 24 | 25 | 45 | 25 | 18 | 8 | 22 | 10 |
| M12 | 0.34 | 40 | 30 | 54 | 30 | 22 | 10 | 26 | 12 |
| M14 | 0.49 | 63 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M16 | 0.7 | 62 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M20 | 1.2 | 99 | 40 | 72 | 40 | 30 | 12 | 35 | 16 |
| M22 | 1.5 | 148 | 45 | 81 | 45 | 35 | 14 | 40 | 18 |
| M24 | 1.8 | 192 | 50 | 90 | 50 | 38 | 16 | 45 | 20 |
| M27 | 2.5 | 194 | 50 | 90 | 50 | 38 | 18 | 45 | 20 |
| M30 | 3.6 | 366 | 65 | 108 | 60 | 45 | 18 | 55 | 24 |
| M33 | 4.3 | 380 | 65 | 108 | 60 | 45 | 22 | 55 | 24 |
| M36 | 5.1 | 585 | 75 | 126 | 70 | 55 | 22 | 65 | 28 |
| M39 | 6.1 | 618 | 75 | 126 | 70 | 55 | 26 | 65 | 28 |
| M42 | 7 | 889 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M45 | 8 | 938 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M48 | 8.6 | 1408 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M52 | 9.9 | 1456 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M56 | 11.5 | 1942 | 110 | 184 | 100 | 80 | 38 | 95 | 42 |
| M64 | 16 | 2736 | 120 | 206 | 110 | 90 | 42 | 100 | 48 |
