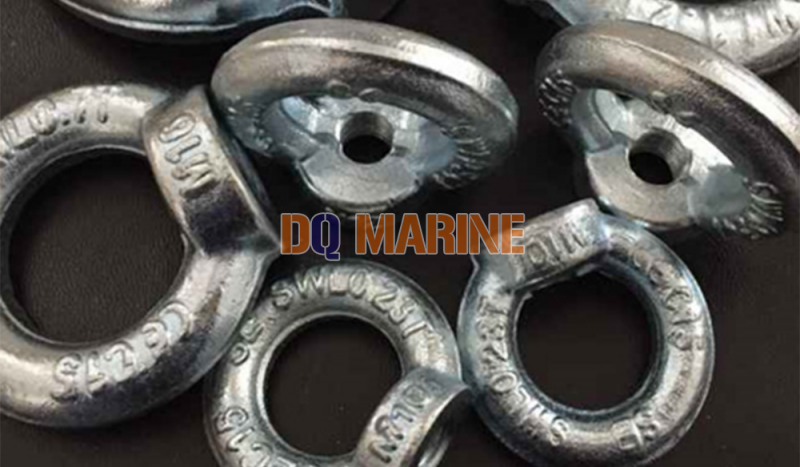

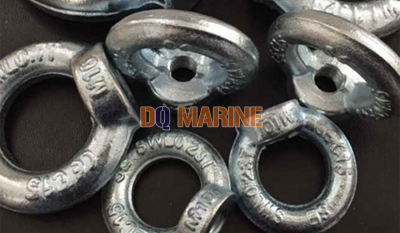

Ring-Nut DIN 582

Description

Ring-Nut DIN 582 adopts German standard, the material is Q235 steel, this production is made by die forging technology, and the surface can be treated of electro galvanizing, zinc plating, hot galvanizing.

Details

Ring-Nut DIN 582 sizes table

Size (mm) WLL (t) Weight 100pcs (Ibs) Dimensions (mm)
d1 d2 d3 e h k
M6 0.14 11 20 36 20 8.5 18 8
M8 0.14 11 20 36 20 8.5 18 8
M10 0.23 20 25 45 25 10 22 10
M12 0.34 35 30 54 30 11 26 12
M16 0.7 53 35 63 35 13 30 14
M20 1.2 79 40 72 40 16 35 16
M22 1.5 128 45 81 45 18 40 18
M24 1.8 159 50 90 50 20 45 20
M27 2.5 154 50 90 50 20 45 20
M30 3.6 291 65 108 60 25 55 24
M33 4.3 287 65 108 60 25 55 24
M36 5.1 459 75 126 70 30 65 28
M39 6.1 446 75 126 70 30 65 28
M42 7 686 85 144 80 35 75 32
M45 8 671 85 144 80 35 75 32
M48 8.6 1108 100 166 90 40 85 38
M52 9.9 1092 100 166 90 40 85 38
M56 11.5 1476 110 184 100 45 95 42
M64 16 2052 120 206 100 50 105 46
