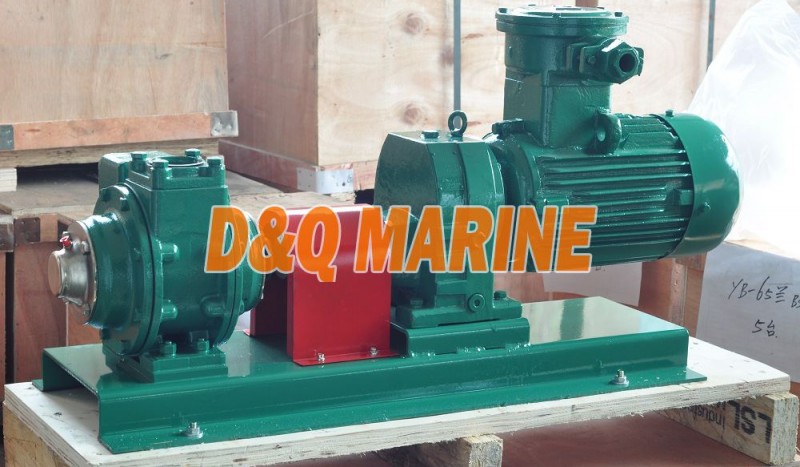

YB Series Rotary Vane pump
The Advantage Of YB Series Rotary Vane pump
Durable pumps for fast and quiet operation.
Sliding vane design provides sustained and trouble free operation, high reliability.
Adjustable relief valve protects pump from excessive pressure.
Application:
Oil tank truck
Fleet refueling
Lube oil
Aviation refuelers
Transport of petro chemicals, gasoline, biofuels.
Technical parameter:
| Model | YB-50 | YB-65 | YB-80 | YB-100 |
| Size | 50mm/2" | 65mm/2-1/2" | 80mm/3" | 100mm/4" |
| Speed (RPM) | 400-650 | 400-650 | 400-650 | 400-650 |
| Flow rate (L/min) | 150--300 | 300--500 | 600-1000 | 1500-1900 |
| Vacuum | 0.5bar | |||
| Working pressure | 5bar | |||
| Power(kw) | 2.2 | 4 | 7.5 | 18.5 |
