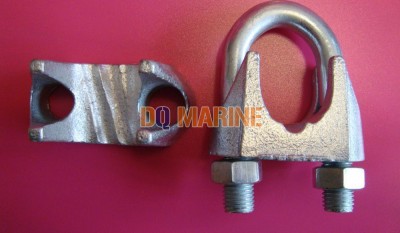

US Type Galvanized Malleable Wire Rope Clips
Description
This product adopts American standard, the body material is malleable iron, and U shape bolt material is Q235 steel, it is made of casting process, the surface can be electro galvanized.
Product Details
US Type Galvanized Malleable Wire Rope Clips sizes table
| Size (in) | Dimensions (in) | Weight 100 pcs (Ibs) | ||||||
| A | B | C | D | E | G | H | ||
| 1/8 | 1/4 | 13/16 | 1/2 | 1/2 | 7/16 | 1/2 | 15/16 | 4.3 |
| 3/16 | 1/4 | 31/32 | 5/8 | 9/16 | 1/2 | 9/16 | 1 1/16 | 6.8 |
| 1/4 | 5/16 | 1 7/32 | 7/8 | 11/16 | 5/8 | 11/16 | 1 3/8 | 14.5 |
| 5/16 | 5/16 | 1 7/32 | 7/8 | 11/16 | 11/16 | 11/16 | 1 3/8 | 15 |
| 3/8 | 3/8 | 1 5/8 | 1 | 7/8 | 13/16 | 7/8 | 1 5/8 | 21.5 |
| 7/16 | 3/8 | 1 5/8 | 1 | 7/8 | 13/16 | 15/16 | 1 5/8 | 24 |
| 1/2 | 7/16 | 2 | 1 1/4 | 1 | 1 1/16 | 1 | 1 7/8 | 37 |
| 9/16 | 1/2 | 2 5/16 | 1 15/32 | 1 3/16 | 1 3/16 | 1 1/8 | 2 3/16 | 55 |
| 5/8 | 1/2 | 2 5/16 | 1 15/32 | 1 3/16 | 1 5/16 | 1 1/8 | 2 3/16 | 59 |
| 3/4 | 9/16 | 2 9/16 | 1 3/4 | 1 11/32 | 1 1/2 | 1 1/4 | 2 7/16 | 84 |
| 7/8 | 5/8 | 3 1/16 | 1 13/16 | 1 5/8 | 1 3/4 | 1 3/4 | 2 7/8 | 128 |
| 1 | 5/8 | 3 3/8 | 2 1/16 | 1 3/4 | 1 15/16 | 2 | 3 | 150 |
| 1 1/8 | 3/4 | 3 7/8 | 2 3/16 | 2 1/16 | 2 3/16 | 2 1/8 | 3 7/16 | 243 |
| 1 1/4 | 3/4 | 3 7/8 | 2 3/16 | 2 1/16 | 2 3/8 | 2 1/2 | 3 7/16 | 262 |
| 1 3/8 | 7/8 | 4 1/2 | 2 | 2 9/16 | 2 7/8 | 3 1/8 | 4 3/16 | 456 |
| 1 1/2 | 7/8 | 4 1/2 | 2 | 2 9/16 | 3 | 3 1/4 | 4 1/4 | 512 |
