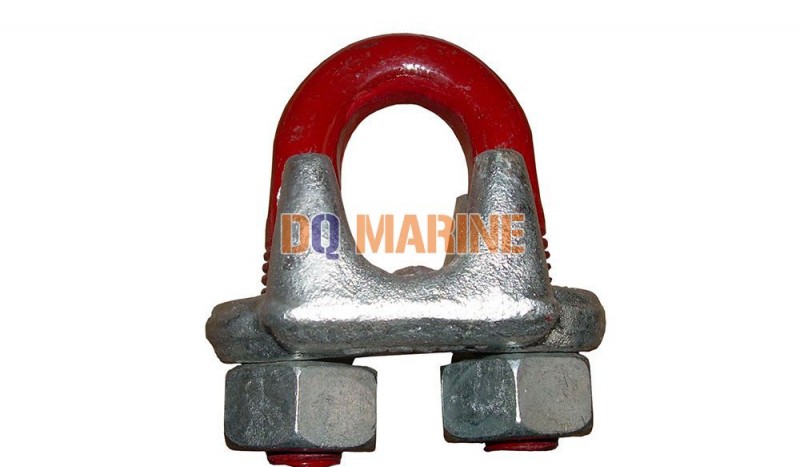

US Type Drop Forged Wire Rope Clips
Description
This product adopt the American standard G-450, the body is made of 45 steel, U shape bolt for Q235 steel, it is constructed by forging process, the screw thread for the British standard. The surface treatment is divided into two kinds, one of body hot galvanizing, U shape bolt electro galvanized, another body for hot galvanizing, U shape bolt spraying plastic.
Product Details
US Type Drop Forged Wire Rope Clips sizes table
| Size (in) | Diemensions (in) | Weight 100 pcs (Ibs) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/8 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.38 | 0.81 | 0.99 | 6 |
| 3/16 | 0.25 | 0.97 | 0.56 | 0.59 | 0.5 | 0.44 | 0.94 | 1.18 | 10 |
| 1/4 | 0.31 | 1.03 | 0.5 | 0.75 | 0.66 | 0.56 | 1.19 | 1.43 | 19 |
| 5/16 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 0.69 | 1.31 | 1.66 | 28 |
| 3/8 | 0.44 | 1.5 | 0.75 | 1 | 0.91 | 0.75 | 1.63 | 1.94 | 48 |
| 7/16 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 78 |
| 1/2 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 80 |
| 9/16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.5 | 109 |
| 5/8 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.5 | 110 |
| 3/4 | 0.62 | 2.75 | 1.44 | 1.5 | 1.39 | 1.06 | 2.25 | 2.84 | 142 |
| 7/8 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 1.25 | 2.44 | 2.16 | 212 |
| 1 | 0.75 | 3.5 | 1.81 | 1.88 | 1.77 | 1.25 | 2.63 | 3.47 | 252 |
| 1 1/8 | 0.75 | 3.88 | 2 | 2 | 1.91 | 1.25 | 2.81 | 3.59 | 283 |
| 1 1/4 | 0.88 | 4.44 | 2.22 | 2.34 | 2.17 | 1.44 | 3.13 | 4.13 | 438 |
| 1 3/8 | 0.88 | 4.44 | 2.22 | 2.34 | 2.31 | 1.44 | 3.13 | 4.19 | 442 |
| 1 1/2 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 1.44 | 3.41 | 4.44 | 544 |
| 1 5/8 | 1 | 5.31 | 2.62 | 2.75 | 2.66 | 1.63 | 3.63 | 4.75 | 704 |
| 1 3/4 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 1.81 | 3.81 | 5.24 | 934 |
| 2 | 1.25 | 6.44 | 3 | 3.38 | 3.03 | 2 | 4.44 | 5.88 | 1300 |
| 2 1/4 | 1.25 | 7.13 | 3.19 | 3.88 | 3.19 | 2 | 4.56 | 6.38 | 1600 |
| 2 1/2 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 2 | 4.69 | 6.63 | 1900 |
| 2 3/4 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 2 | 5 | 6.88 | 2300 |
| 3 | 1.5 | 9.19 | 3.88 | 4.75 | 4.44 | 2.38 | 5.31 | 7.61 | 3100 |
| 3 1/2 | 1.5 | 10.75 | 4.5 | 5.5 | 6 | 2.38 | 6.19 | 8.38 | 4000 |
