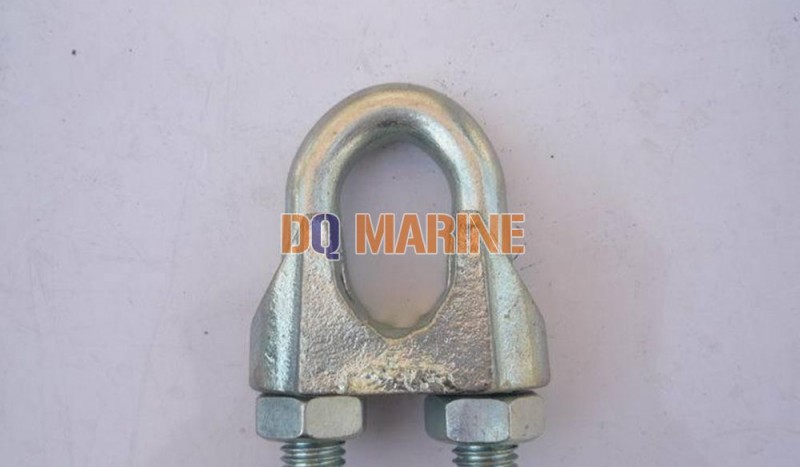

Galvanized Malleable Wire Rope Clips Type B
Description
This product adopts Chinese standard, the body material is malleable iron, U shape bolt material is Q235 steel, Surface can be electro galvanized with yellow zinc or white zinc.
Product Details
Galvanized Malleable Wire Rope Clips Type B sizes table
| Dimensions(mm) | Weight 100 pcs (kg) | ||||||
| A | B | C | D | E | F | G | |
| 4 | 20 | 12 | 9 | 9.5 | 19 | 12 | 2.6 |
| 5 | 26.3 | 14 | 11 | 10.8 | 22 | 13.5 | 3.74 |
| 6 | 26 | 14 | 12.5 | 11.5 | 25 | 15.5 | 5.58 |
| 6 | 30 | 16 | 15.5 | 16 | 31 | 18 | 8.38 |
| 8 | 37.5 | 20 | 21 | 21 | 40 | 22 | 17.48 |
| 10 | 46.4 | 24 | 25 | 25 | 47 | 25 | 31.7 |
| 12 | 57.1 | 28 | 30 | 30 | 55 | 28 | 50.88 |
| 12 | 64.25 | 40 | 33 | 33 | 58.5 | 28.5 | 59 |
| 16 | 71 | 34 | 36.5 | 36.5 | 65 | 31 | 98 |
| 16 | 77.4 | 38 | 40 | 40 | 72 | 36 | 125.9 |
| 20 | 88.1 | 44 | 45 | 45 | 80 | 40 | 194.9 |
