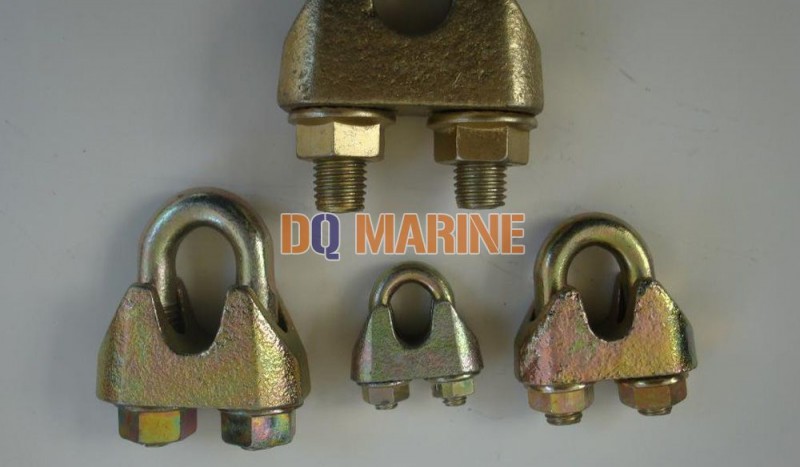

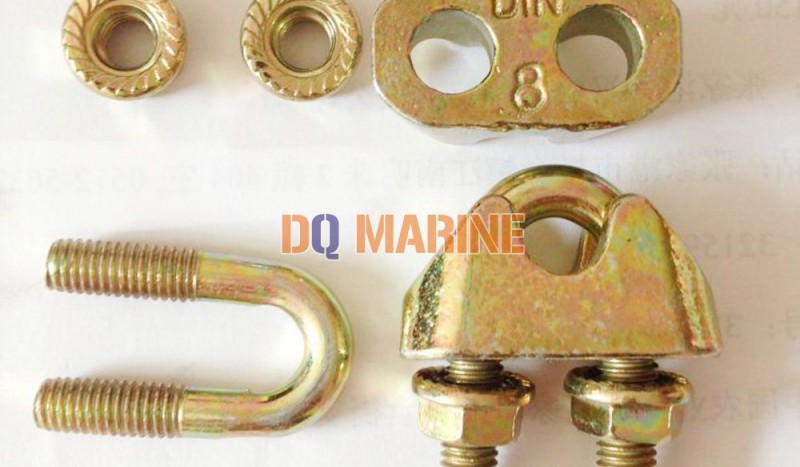

DIN 1142 Malleable Wire Rope Clips
Description
This product adopts German standard, the material is malleable iron, the clip size is from 5mm to 40mm, and Surface can be electro galvanized with yellow zinc. Product can provide SGS and CE certificates
Product Details
DIN 1142 Malleable Wire Rope Clips sizes table
| Size (mm) | Dimensions(mm) | Weight 100pcs (lbs) | ||||||
| a | b1 | b2 | d | h1 | h2 | l | ||
| 5 | 13 | 7 | 13 | 5 | 25 | 13 | 25 | 5 |
| 6.5 | 17 | 8 | 16 | 6 | 32 | 14 | 30 | 9 |
| 8 | 20 | 10 | 20 | 8 | 41 | 18 | 39 | 18 |
| 10 | 24 | 12 | 20 | 8 | 46 | 21 | 40 | 20 |
| 13 | 30 | 15 | 28 | 12 | 64 | 29 | 55 | 61 |
| 16 | 35 | 18 | 32 | 14 | 76 | 35 | 64 | 95 |
| 19 | 36 | 22 | 32 | 14 | 83 | 40 | 68 | 108 |
| 22 | 40 | 24 | 34 | 16 | 96 | 44 | 74 | 150 |
| 26 | 50 | 26 | 38 | 20 | 111 | 51 | 84 | 258 |
| 30 | 55 | 34 | 41 | 20 | 127 | 59 | 95 | 309 |
| 34 | 60 | 38 | 45 | 22 | 141 | 67 | 105 | 470 |
| 40 | 65 | 44 | 49 | 24 | 159 | 77 | 117 | 591 |
