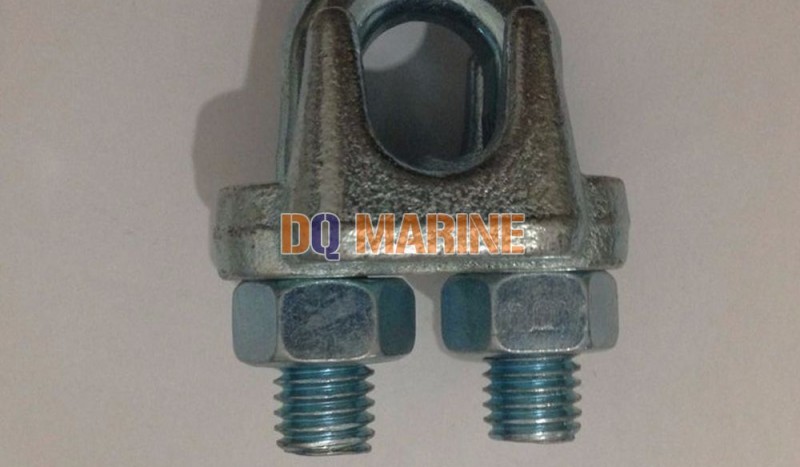

Galvanized Malleable Wire Rope Clips Type A
Category:
Wire Rope Clips
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Galvanized Malleable Wire Rope Clips Type A:
Description

This product adopts Chinese standard, the body material is malleable iron, U shape bolt material is Q235 steel, Surface can be electro galvanized with yellow zinc or white zinc.

Product Details

Galvanized Malleable Wire Rope Clips Type A sizes table

Size(mm) Dimensions(mm) Weight 100 pcs (kg)
A B C D E F G
6 22.5 14 17 5 12 14 24.8 2.1
8 28 17 21 6 15 16 30.66 3.7
10 38 21 28 8 19 20 37.95 8.5
12 45 27 34 10 24 25 47.55 16
15 52 32 40 12 29 30 57.15 25
20 62 38 46.5 14 36 36 71.73 43
22 69 43 51.5 16 40 39 78.73 60
25 76 50 56 18 43 44 90.4 82
28 85 57 62 20 48 48 96.9 112
32 93 61 67 22 55 51 110.4 150
40 111 73 81 24 64 62 122.5 254
45 123 86 88 27 72 70 139.5 343
50 135 95 95 30 80 88 156 456
