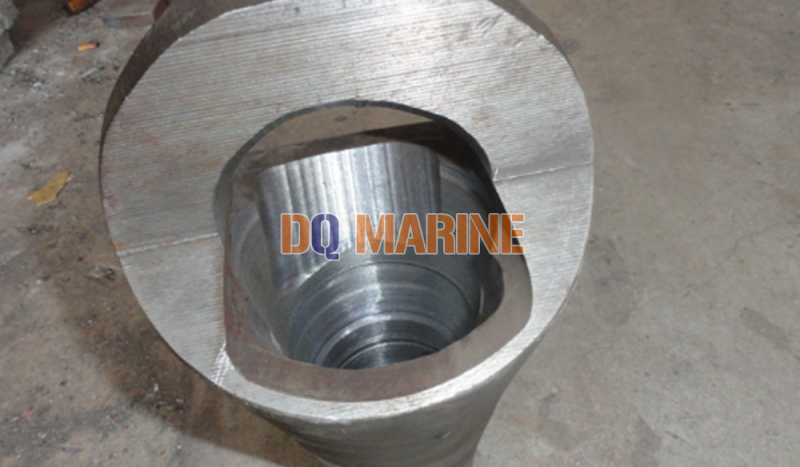

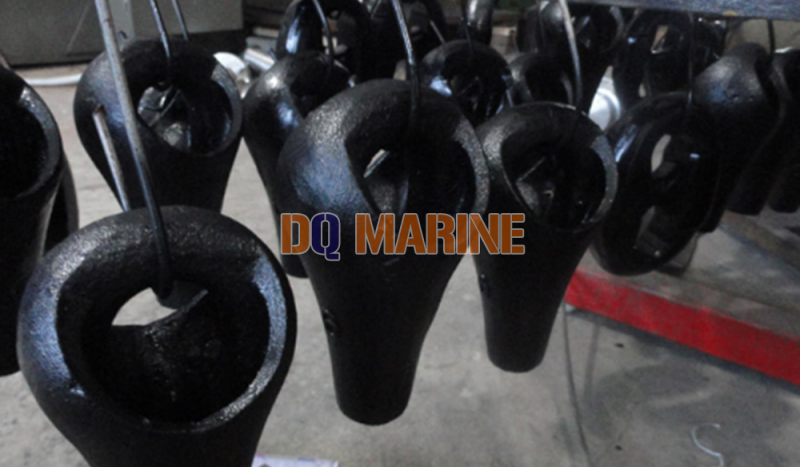

Pear Shape Wire Rope Link:
Pear Shape Wire Rope Link Introduction
Wire rope diameter from 10mm to 56mm.
Product Details
The parameter table
| TYPE | Industry No. | Dia of Rope(mm) | Dimensions (mm) | |||||
| A | B | E | F | H | I | |||
| CZTH2701 | 1 | 10-11 | 69 | 48 | 12 | 12 | 24 | 12 |
| CZTH2702 | 2 | 12-13 | 79 | 56 | 15 | 14 | 25 | 14 |
| CZTH2703 | 3 | 14-15 | 91 | 64 | 17 | 16 | 29 | 16 |
| CZTH2704 | 4 | 16-17 | 103 | 70 | 19 | 18 | 31 | 18 |
| CZTH2705 | 5 | 18-19 | 114 | 84 | 21 | 19 | 38 | 20 |
| CZTH2706 | 6 | 20-21 | 129 | 84 | 23 | 21 | 42 | 22 |
| CZTH2707 | 7 | 22-24 | 140 | 100 | 26 | 23 | 44 | 26 |
| CZTH2708 | 8 | 25-27 | 158 | 100 | 28 | 25 | 48 | 29 |
| CZTH2709 | 9 | 28-30 | 171 | 120 | 31 | 27 | 56 | 31 |
| CZTH2710 | 10 | 31-33 | 190 | 120 | 32 | 29 | 58 | 35 |
| CZTH2711 | 11 | 34-36 | 203 | 142 | 36 | 31 | 64 | 37 |
| CZTH2712 | 12 | 37-39 | 225 | 142 | 39 | 35 | 68 | 40 |
| CZTH2713 | 13 | 40-42 | 242 | 166 | 43 | 37 | 70 | 43 |
| CZTH2714 | 14 | 43-45 | 265 | 166 | 47 | 41 | 72 | 47 |
| CZTH2715 | 15 | 46-48 | 288 | 166 | 49 | 43 | 80 | 51 |
| CZTH2717 | 17 | 56 | 340 | 220 | 60 | 54 | 90 | 59 |
