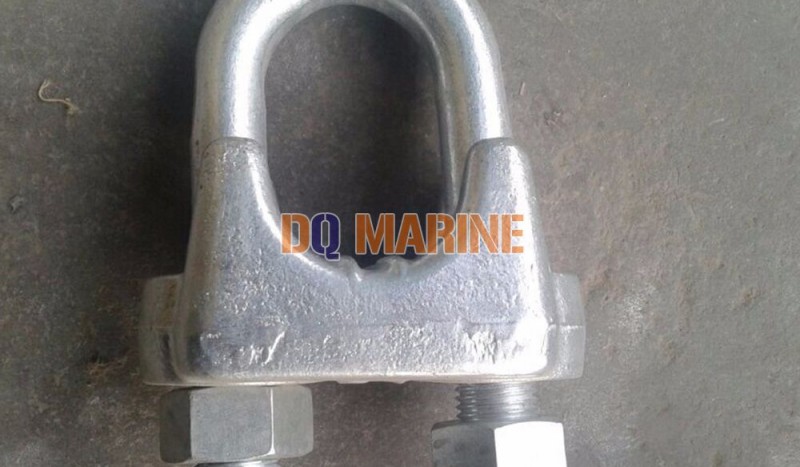

JIS Type Drop Forged Wire Rope Clips
Description
This product adopts Japanese standard, the material is carbon steel, and it is constructed by die forging process. Surface can be electro galvanized, hot galvanized, dacromet, Environmental protection galvanized, or kept original color.
Product Details
JIS Type Drop Forged Wire Rope Clips sizes table
| Size (mm) | Dimensions(mm) | Weight 100 pcs (kg) | ||||||
| A | B | C | D | E | F | G | ||
| 6 | 22.5 | 14 | 17 | 5 | 12 | 14 | 24.8 | 2.1 |
| 8 | 28 | 17 | 21 | 6 | 15 | 16 | 30.66 | 3.7 |
| 10 | 38 | 21 | 28 | 8 | 19 | 20 | 37.95 | 8.5 |
| 12 | 45 | 27 | 34 | 10 | 24 | 25 | 47.55 | 16 |
| 15 | 52 | 32 | 40 | 12 | 29 | 30 | 57.15 | 25 |
| 20 | 62 | 38 | 46.5 | 14 | 36 | 36 | 71.73 | 43 |
| 22 | 69 | 43 | 51.5 | 16 | 40 | 39 | 78.73 | 60 |
| 25 | 76 | 50 | 56 | 18 | 43 | 44 | 90.4 | 82 |
| 28 | 85 | 57 | 62 | 20 | 48 | 48 | 96.9 | 112 |
| 32 | 93 | 61 | 67 | 22 | 55 | 51 | 110.4 | 150 |
| 40 | 111 | 73 | 81 | 24 | 64 | 62 | 122.5 | 254 |
| 45 | 123 | 86 | 88 | 27 | 72 | 70 | 139.5 | 343 |
| 50 | 135 | 95 | 95 | 30 | 80 | 88 | 156 | 456 |
