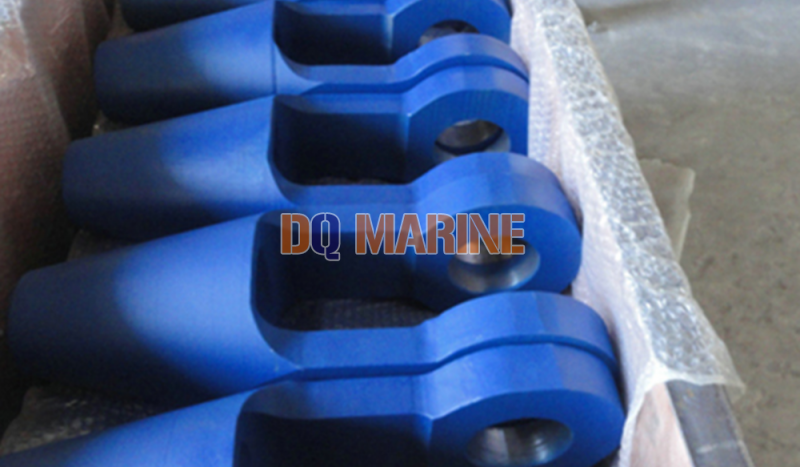

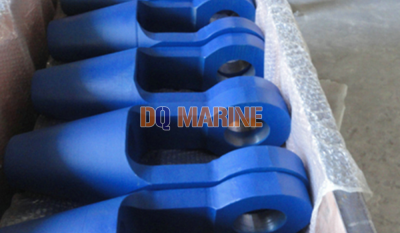

Open Wire Rope Link:
Open Wire Rope Link Introduction
Wire rope diameter from 10.5mm to 63mm.
Product Details
The parameter table
| TYPE | Wire Rope Diameter(mm) | Dimensions (mm) | ||||
| L | B | A | D | D1 | ||
| CZTH2501 | 10.5 | 144 | 29 | 45 | 14 | 20 |
| CZTH2502 | 12 | 159 | 31 | 49 | 16 | 22 |
| CZTH2503 | 14 | 176 | 31 | 53 | 18 | 24 |
| CZTH2504 | 16 | 193 | 32 | 58 | 20 | 26 |
| CZTH2505 | 18 | 210 | 35 | 65 | 23 | 29 |
| CZTH2506 | 20 | 227 | 37 | 73 | 25 | 32 |
| CZTH2507 | 22.5 | 245 | 40 | 80 | 30 | 35 |
| CZTH2508 | 24 | 262 | 44 | 88 | 32 | 38 |
| CZTH2509 | 25 | 281 | 48 | 96 | 33 | 41 |
| CZTH2510 | 28 | 298 | 51 | 103 | 36 | 44 |
| CZTH2511 | 30 | 316 | 54 | 110 | 38 | 47 |
| CZTH2512 | 31.5 | 335 | 56 | 118 | 40 | 50 |
| CZTH2513 | 33.5 | 353 | 59 | 125 | 42 | 54 |
| CZTH2514 | 36 | 373 | 62 | 132 | 44 | 57 |
| CZTH2515 | 37.5 | 392 | 66 | 138 | 47 | 60 |
| CZTH2516 | 40 | 413 | 70 | 146 | 49 | 63 |
| CZTH2517 | 42 | 434 | 72 | 152 | 52 | 66 |
| CZTH2518 | 45 | 474 | 79 | 167 | 54 | 72 |
| CZTH2519 | 47.5 | 494 | 82 | 174 | 57 | 75 |
| CZTH2520 | 50 | 516 | 85 | 181 | 60 | 78 |
| CZTH2521 | 53 | 536 | 89 | 189 | 63 | 81 |
| CZTH2522 | 56 | 567 | 93 | 199 | 66 | 85 |
| CZTH2523 | 60 | 619 | 101 | 215 | 70 | 92 |
| CZTH2524 | 63 | 641 | 105 | 221 | 74 | 95 |
