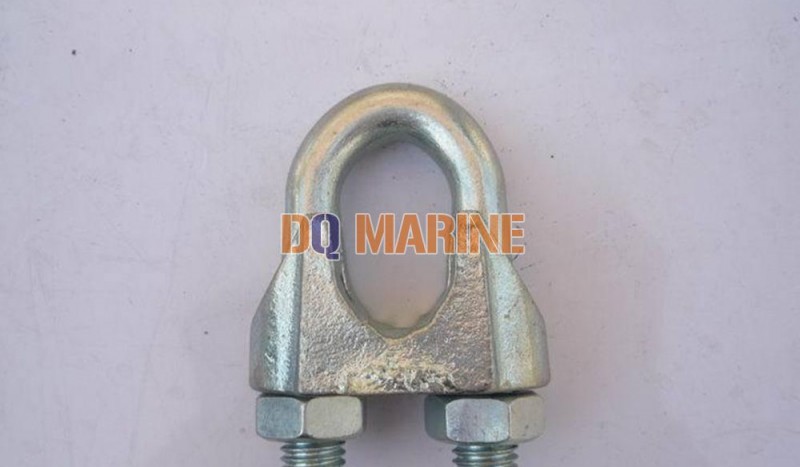

DIN 741 Malleable Wire Rope Clips
Category:
Wire Rope Clips
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
DIN 741 Malleable Wire Rope Clips:
Description

This product adopts German standard, the material is carbon steel, the clip size is from 5mm to 40mm, Surface can be electro galvanized, hot galvanized, plastics spraying.

Product Details

DIN 741 Malleable Wire Rope Clips sizes table

Size (mm) Dimensions (mm) Weight 100 pcs (kg)
A B C D E F G
3 21 10 10 4 9 12 16.6 1.4
5 23 10 11 5 11 13 19.65 1.5
6.5 26 11 12 5 13 15 23.65 2.1
8 30 15 14 6 16 19 28.85 4.1
10 34 17 18 8 19 22 35 6.8
11 36 18 19 8 20 22 37 7.2
13 40 21 23 10 24 30 46.24 13
14 44 22 23 10 25 30 48.24 13.5
16 50 26 26 12 29 33 52.5 21
19 54 30 29 12 32 38 64.5 28
22 61 34 33 14 37 44 72.5 40
26 65 37 35 14 41 45 82.5 44
30 74 43 37 16 48 50 95.6 66
34 80 50 42 16 52 55 105.6 85
40 88 55 45 16 58 60 125.6 104
