13T Electrial Jib Crane

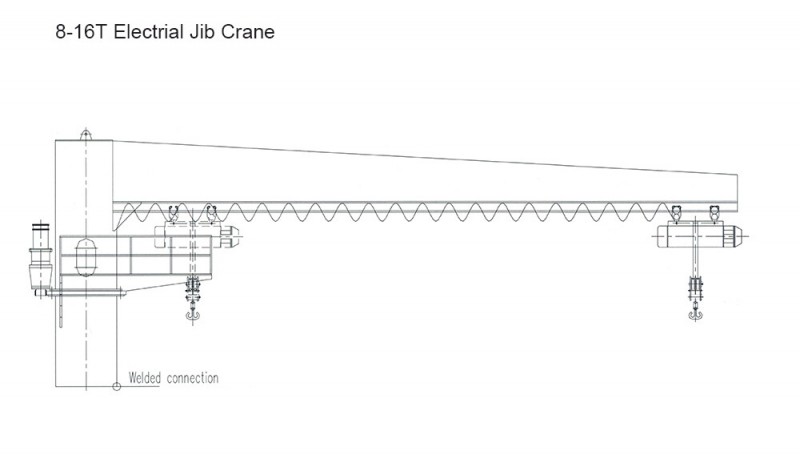

8-16T Electrial Jib Crane
An electric jib crane is a lifting device that uses a single column and a swing arm to lift cargo. The lower end of the column of the single-arm crane is generally fixed on a solid foundation, and the swing arm can be rotated according to the needs of the customer.
Technical specifications
|
Working Load (t) |
Working Radius (m) |
Liffing Speed (m/min) |
Stepped Speed (m/min) |
Slewing Speed (r/min) |
Motor Power(KW) | ||
| Lift | Step | Slew | |||||
| 8 | 9 | 7 | 7 | 0.2 | 15 | 1.5 | 5.7 |
| 15 | 3.5 | 6 | 0.2 | 11 | 1.5 | 12.5 | |
| 10 | 15 | 3.5 | 6 | 0.2 | 11 | 1.5 | 12.5 |
| 12 | 13 | 3.5 | 6 | 0.2 | 11 | 1.5 | 12.5 |
| 13 | 13 | 3.5 | 6 | 0.2 | 15 | 1.5 | 12.5 |
| 15.5 | 3.5 | 6 | 0.2 | 15 | 1.5 | 12.5 | |
| 17 | 3.5 | 6 | 0.2 | 15 | 1.5 | 12.5 | |
| 15 | 18 | 3.5 | 6 | 0.2 | 15 | 1.5 | 25 |
| 19 | 3.5 | 6 | 0.2 | 15 | 1.5 | 25 | |
| 16 | 15 | 3.5 | 4 | 0.2 | 15 | 1.5 | 25 |
| 16 | 6 | 6 | 0.2 | 22 | 1.5 | 25 | |
Note：Design according to client request.
