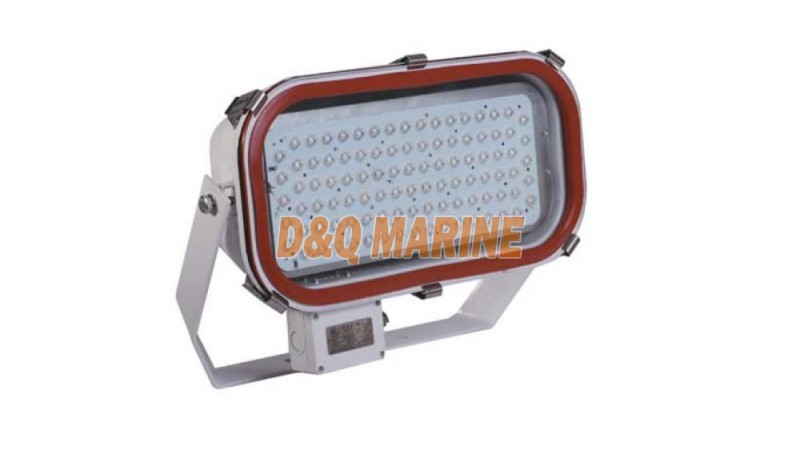

TG15LED LED Flood Light
The scope of application
This product is designed to use for illumination in ship, dock, port and wharf, square and tunnel etc.
Products feature
1. The body of light is made of good quality stainless steel by compression molding with excellent corrosion resistance.
2. The shade adopt toughened glass.
3. The body of light can be adjusted about 90 degree up and 45 degree down.
4. LED light source, long working life, high light intensity, low energy consumption.
5.Cable outside diameter is Φ10～Φ14mm.
Adopt standard
1. Conform to international standard of IEC60598-1-2008.
2. Conform to Rules for the classification of sea-going steel ships.
Installation
TG15LED LED Flood Light Specification
| Type | TG15LED | |
| Voltage(V) | 220V/50HZ,220V/60HZ | |
| Light Source | LED | |
| Power(W) | 100 | |
| Protection Class | IP56 | |
| Weight( Kg) | 7.5 | |
