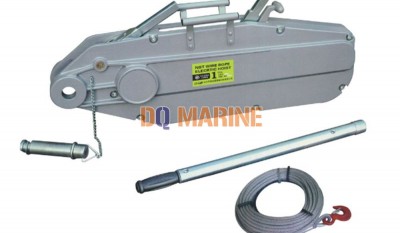

NST Steel Wire Rope Hoist
NST Steel Wire Rope Hoist Introduction
Light weight, impact structure, widely used and easy to maintain.
Shell cover is made of aluminum alloy steel, light weight, and portable.
Working length of the wire rope can reach 20m or 30m, also as your request.
Reasonable lever connecting system, the traction force will be small and the wear of the wire rope will be small as well. High reliability of the machine.
Can pull goods from different direction and angle, also can do nonlinear traction to get the best operation position, and extend the load.
Product Details
The sizes table
| Model | NST6180.8 | NST-6181.0 | NST-6181.6 | NST-6183.2 |
| Rated Load(T) | 0.8 | 1 | 1.6 | 3.2 |
| Rated Forward Travel(mm) | >52 | >52 | >55 | >28 |
| Efficient Length of Forward Handle(mm) | 825 | 825 | 1200 | 1200 |
| Drive Grade | 1 | 1 | 1 | 2 |
| Dia of Wire Rope(mm) | 8 | 8 | 11 | 16 |
| Length of Wire Rope(mm) | 10;20 | 10;20 | 10;20 | 10 |
| Net Weight(KG) | 6 | 6 | 12 | 12 |
| Rated Forward Hand Force(N) | <284 | <353 | <412 | <441 |
| Package Size(mm) | 428x64x235 | 428x64x235 | 545x97x28 | 660x116x35 |
