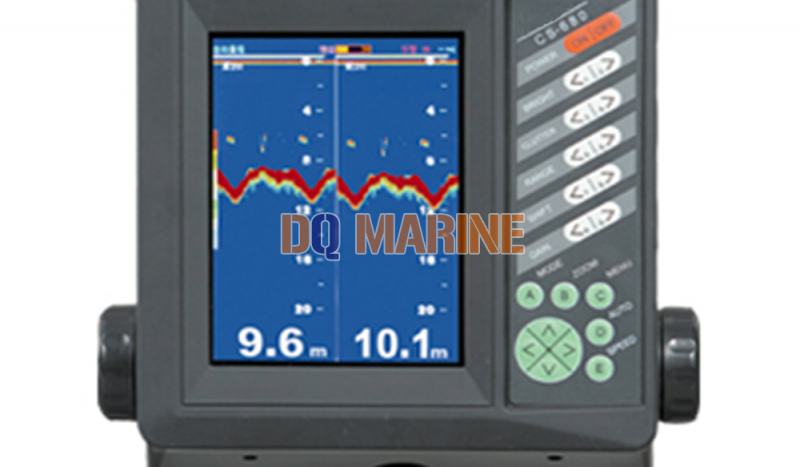

CS680 Fish Finder
CS680 Fish Finder Introduction
1. Confirm to the standard and rules of technology issued by Register of Fishing Vessel of the People’s of China.
2. Low-cost, No-paper, Non-pollution, High-precision, High-reliability.
3. High Contrast ratio 6-inch color LED with viewing angles and brightness adjustment.
4. Auto range: Automatically select the range based on water.
5. Auto gain: automatically change based on water.
6. Great anti interference function.
7. Zoom & Extension function: Bottom extension mode, Auto zoom mode, Manual zoom mode.
CS680 Product Technical Parameter
| Display | 6-inch TFT color LCD (640x480) |
| Basic Range | 0~800m |
| Auto Range | Adjust range automatically |
| Auto Gain | Suit for the water condition |
| Anti-jamming | Powerful function of anti-jamming |
| Fish Alarm | Adjust menu button to meet your demand |
| Alarm Depth | 0-20m |
| Brightness | Adjustable Brightness |
| Picture Speed | 8-level Adjustable Picture Speed |
| Frequency | 50KHz/200KHz |
| Trans Power | 300W（RMS） |
| Power Supply | DC24V ± 20% |
