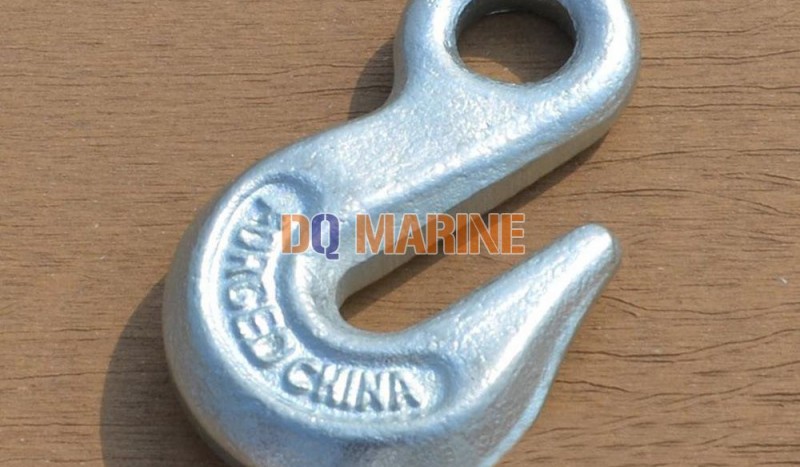

Eye Grab Hooks H323 A323
Introduction
This product adopts American standard, is made of 45 steel and 40Cr, and it is built with die forging process, it also has advantages of small volume, light weight and high kept original color, Surface can electro galvanized with yellow or white.
Ultimate Load is 4 times the Working Load Limit.
Product Details
Eye Grab Hooks H323 A323 sizes table
| Size (in) | Working Load Limit (Ibs) | Dimensions（in） | Weight (Ibs) | |||
| B | E | R | ||||
| 1/4 | 2600 | 3600 | 0.5 | 0.34 | 1.97 | 0.28 |
| 5/16 | 3900 | 5400 | 0.56 | 0.44 | 2.25 | 0.45 |
| 3/8 | 5400 | 7500 | 0.66 | 0.5 | 2.56 | 0.79 |
| 7/16 | 7200 | 10000 | 0.75 | 0.56 | 2.94 | 1.19 |
| 1/2 | 9200 | 12750 | 0.88 | 0.66 | 3.38 | 1.8 |
| 5/8 | 12750 | 19000 | 1.06 | 0.78 | 4.11 | 3.3 |
| 3/4 | 18500 | 27000 | 1.38 | 0.94 | 5.16 | 6 |
